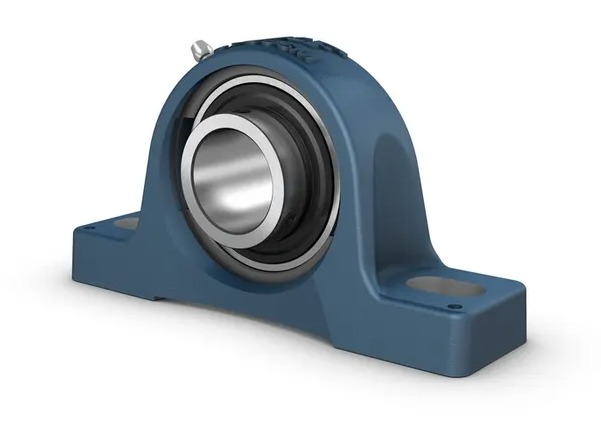

SKF Pillow Block Ball Bearing Unit – SYJ 75 TF

The SYJ 75 TF Pillow Block Ball Bearing Unit is designed for reliable performance in industrial applications. It features an insert bearing mounted in a robust cast iron housing that can be securely bolted to a support surface. The inner ring is extended on both sides and locked onto the shaft using set screws, ensuring a firm and stable connection. This unit is pre-lubricated and sealed, offering low maintenance and long service life. Suitable for applications requiring both constant and alternating rotation, it provides a cost-effective and efficient solution for various machinery setups.

Specifications:

• Shaft Diameter: 75 mm
• Attachment Bolt Diameter: 20 mm
• Centre Height (Pillow Block): 82.5 mm
• Housing Overall Width: 74 mm
• Centre Distance Between Bolt Holes: 217 mm
• Bearing Width (Total): 73.3 mm
• Material: Cast Iron
• Locking Mechanism: Set Screw
• Lubrication: Pre-lubricated & Sealed
