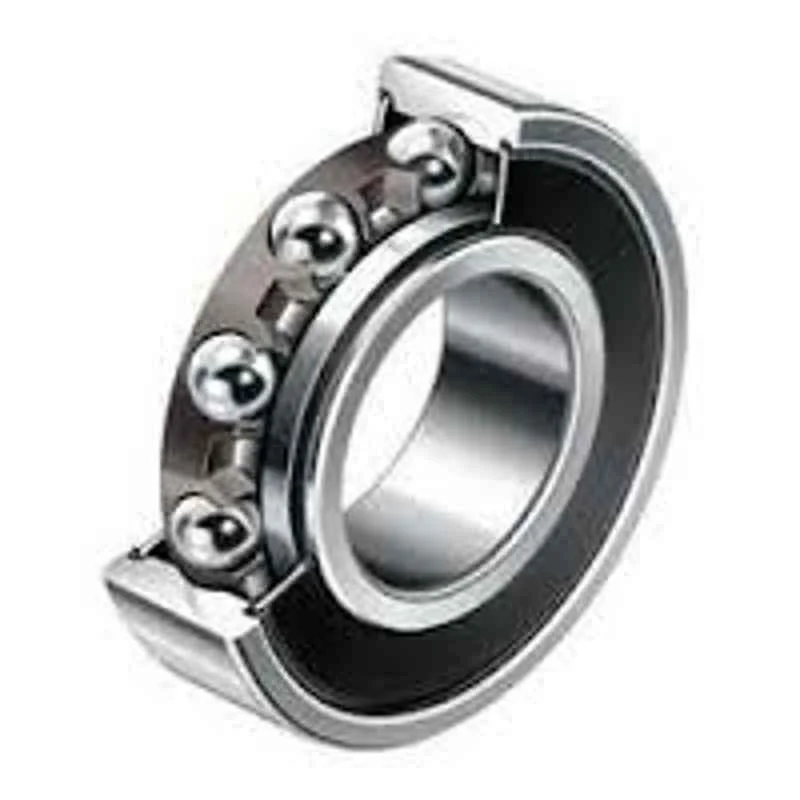

Single Row Deep Groove Ball Bearing – 6000-LLUC3/2AS

The NTN 6000-LLUC3/2AS is a precision-engineered single-row deep groove ball bearing built for durability, quiet operation, and high-speed efficiency. With a compact design featuring a 10mm inner diameter, 26mm outer diameter, and 8mm width, it’s ideal for tight spaces and lightweight assemblies.

This bearing includes LLU double-sided contact seals made from nitrile rubber, offering enhanced protection against dust, moisture, and contaminants. The 2AS designation ensures the seals are in contact with the inner ring, improving sealing effectiveness and lubricant retention.

Manufactured from high-carbon chrome steel, the NTN 6000-LLUC3/2AS delivers excellent strength and wear resistance. Its pressed steel cage supports smooth ball movement, while the C3 radial clearance allows for thermal expansion and higher speed tolerance. With a grease-limited speed of 19,000 RPM, it’s perfect for electric motors, gearboxes, and precision machinery.

Operating reliably across a wide temperature range of -40°C to +120°C, this bearing meets ISO Class 0 precision standards and offers a dynamic load rating of 5.05 kN, ensuring long-lasting performance under demanding conditions.

SEO Keywords to target: NTN 6000 bearing, LLU sealed bearing, deep groove ball bearing 10x26x8, C3 clearance bearing, nitrile rubber seal bearing, high-speed ball bearing

Specifications
