Description

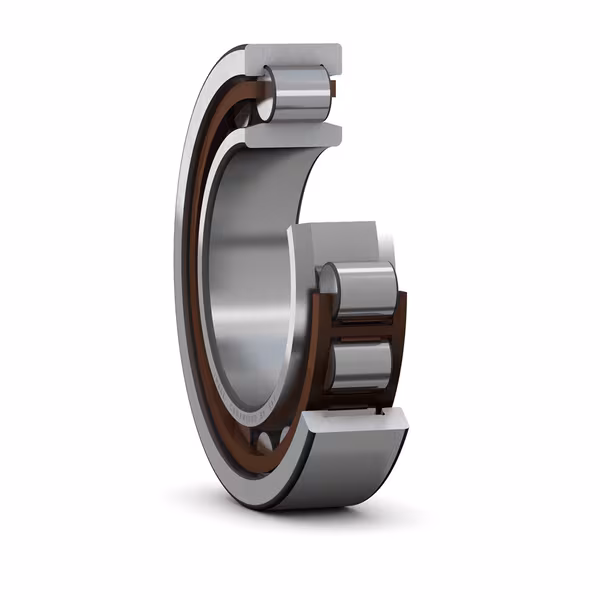

The NU 1007 ECP cylindrical roller bearing is designed to deliver reliable performance in demanding applications requiring high load capacity and speed capability. Its NU configuration—with two flanges on the outer ring and none on the inner ring—provides the ability to accommodate axial displacement in both directions, making it well-suited for systems where shaft expansion or contraction occurs.
The separable design allows the bearing’s rings and roller-cage assembly to be mounted independently, simplifying installation, inspection, and maintenance. This feature also enables component interchangeability, reducing downtime during servicing.
Optimized for low friction, the NU 1007 ECP offers long service life and dependable performance. As an SKF Explorer-class bearing, it benefits from advanced material and manufacturing technologies that enhance reliability and efficiency in high-speed operations.
Specifications
| Feature | Details |
|---|---|
| Part number | NU 1007 ECP |
| Weight | 0.156 kg |
| Bearing type | Cylindrical roller bearing |
| Design | NU |
| Number of rows | 1 |
| Cage | Non-metallic |
| Bore type | Cylindrical |
| Bore diameter | 35 mm |
| Outside diameter | 62 mm |
| Width | 14 mm |
| Number of flanges, outer ring | 2 |
| Number of flanges, inner ring | 0 |
| Axial displacement capability | In both directions |
| Loose flange | None |
| Locating feature, outer ring | Without |
| Radial internal clearance | CN |
| Tolerance class | Normal |
| Basic dynamic load rating | 41.5 kN |
| Basic static load rating | 38 kN |
| Reference speed | 13 000 r/min |
| Limiting speed | 13 000 r/min |
| SKF performance class | SKF Explorer |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
| Coating | Without |
| Carbon footprint (indicative) | 0.562 kg CO₂e |
| eClass code | 23-05-09-01 |
| UNSPSC code | 31171505 |
