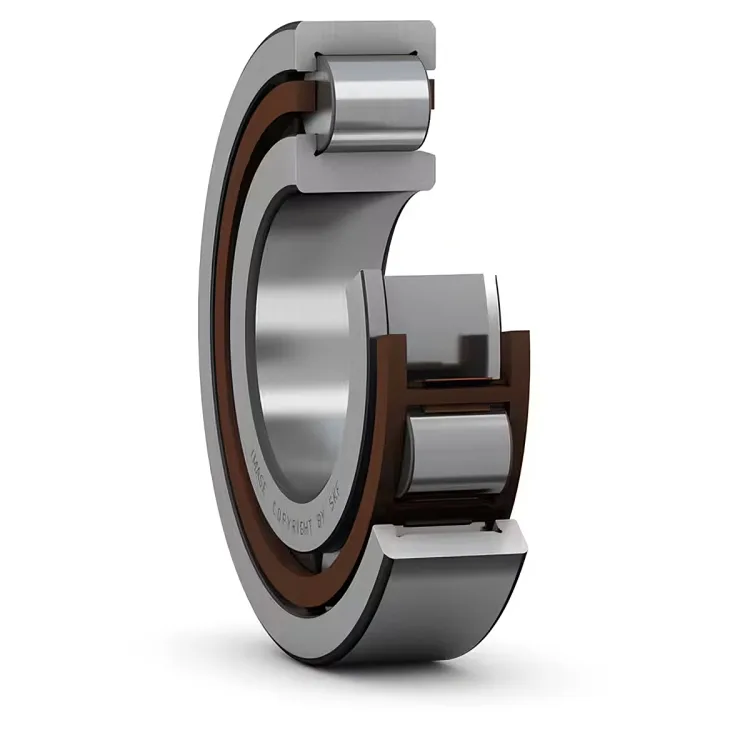

Single Row Cylindrical Roller Bearing – NJ 309 ECP
The NJ 309 ECP cylindrical roller bearing is built for high radial load capacity and efficient high-speed performance. With an NJ design, it locates the shaft axially in one direction, while its separable construction simplifies mounting, dismounting, and component interchange.
Original price was: $66.12.$62.66Current price is: $62.66.
(Save $3.46)
In stock
Description
The NJ 309 ECP is a high-performance single row cylindrical roller bearing designed for substantial radial load capacity and efficient high-speed operation. Its NJ design, featuring two integral flanges on the outer ring and one on the inner ring, allows axial location of the shaft in one direction, providing precise axial guidance where required.
The separable construction simplifies mounting, dismounting, and replacement of components, reducing downtime during maintenance. A lightweight, non-metallic cage minimizes friction, ensures smoother rotation, and extends service life. As part of the SKF Explorer performance class, the NJ 309 ECP offers optimized load distribution, increased reliability, and consistent performance under demanding conditions.
Ideal for gearboxes, motors, compressors, and heavy industrial machinery, this bearing delivers durability, efficiency, and long-lasting operation.
Specifications:
| Feature | Specification |
|---|---|
| Part Number | NJ 309 ECP |
| Bearing Type | Cylindrical roller bearing |
| Design | NJ design |
| Bore Diameter | 45 mm |
| Outside Diameter | 100 mm |
| Width | 25 mm |
| Basic Dynamic Load Rating | 112 kN |
| Basic Static Load Rating | 100 kN |
| Reference Speed | 7,500 r/min |
| Limiting Speed | 8,500 r/min |
| SKF Performance Class | SKF Explorer |
| Number of Rows | 1 |
| Axial Displacement Capability | In one direction |
| Locating Feature (Outer Ring) | Without |
| Bore Type | Cylindrical |
| Cage Material | Non-metallic |
| Number of Flanges (Outer Ring) | 2 |
| Number of Flanges (Inner Ring) | 1 |
| Loose Flange | None |
| Radial Internal Clearance | CN |
| Tolerance Class | Normal |
| Material | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | Without |
| Carbon Footprint | 3.21 kg CO2e |
| Product Net Weight | 0.893 kg |
| eClass Code | 23-05-09-01 |
| UNSPSC Code | 31171505 |
Additional information
| Weight | 0.893 kg |
|---|
