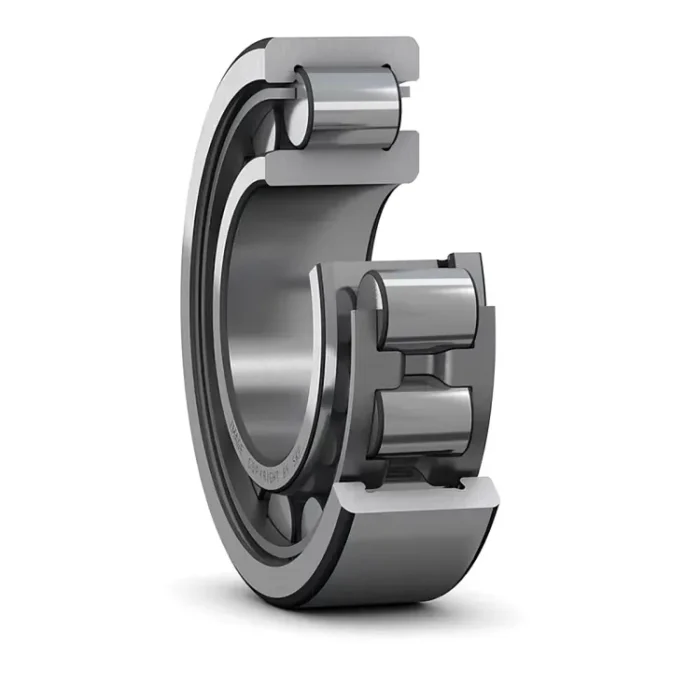

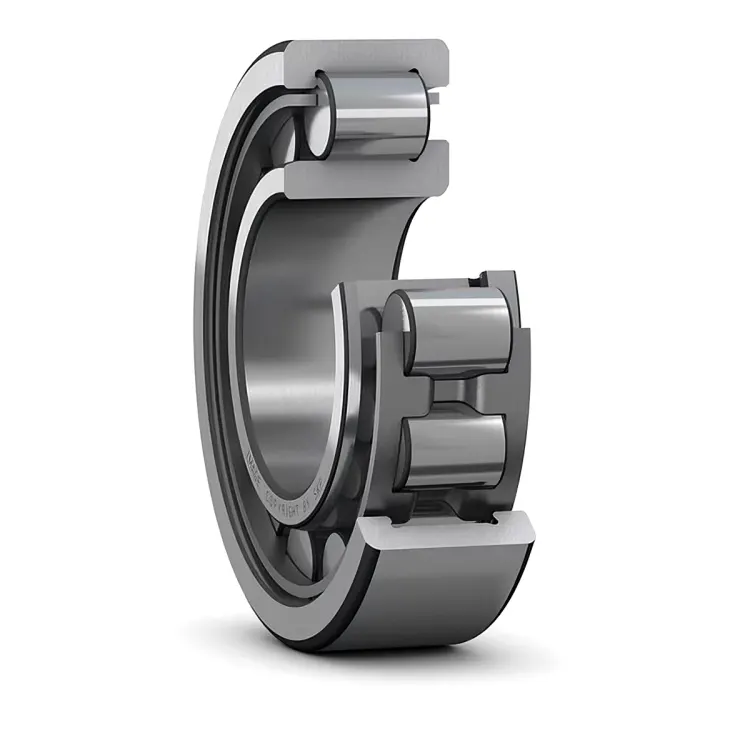

Single Row Cylindrical Roller Bearing – NJ 309 ECJ
The NJ 309 ECJ cylindrical roller bearing supports high radial loads and operates efficiently at high speeds. Its NJ design enables axial shaft location in one direction, while the separable construction simplifies mounting, dismounting, and maintenance.
Original price was: $95.80.$90.79Current price is: $90.79.
(Save $5.01)
In stock
Description
The NJ 309 ECJ is a robust single row cylindrical roller bearing engineered for heavy-duty applications requiring high radial load capacity and reliable performance at elevated speeds. Its NJ design, with two flanges on the outer ring and one on the inner ring, provides axial location of the shaft in one direction, ensuring precise axial guidance where needed.
The separable construction simplifies installation, removal, and interchangeability of components, reducing downtime and improving serviceability. A durable sheet metal cage enhances stability and ensures dependable performance under demanding operating conditions. As part of the SKF Explorer performance class, the NJ 309 ECJ offers optimized load distribution, reduced friction, extended service life, and consistent performance in motors, gearboxes, compressors, and other industrial machinery.
Specifications:
| Feature | Value |
|---|---|
| Part Number | NJ 309 ECJ |
| Bearing Type | Cylindrical roller bearing |
| Design | NJ design |
| Bore Diameter | 45 mm |
| Outside Diameter | 100 mm |
| Width | 25 mm |
| Basic Dynamic Load Rating | 112 kN |
| Basic Static Load Rating | 100 kN |
| Reference Speed | 7,500 r/min |
| Limiting Speed | 8,500 r/min |
| SKF Performance Class | SKF Explorer |
| Number of Rows | 1 |
| Axial Displacement Capability | In one direction |
| Locating Feature (Outer Ring) | Without |
| Bore Type | Cylindrical |
| Cage Material | Sheet metal |
| Number of Flanges (Outer Ring) | 2 |
| Number of Flanges (Inner Ring) | 1 |
| Loose Flange | None |
| Radial Internal Clearance | CN |
| Tolerance Class | Normal |
| Material | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | Without |
| Carbon Footprint | 3.28 kg CO2e |
| Product Net Weight | 0.91 kg |
| eClass Code | 23-05-09-01 |
| UNSPSC Code | 31171505 |
Additional information
| Weight | 0.91 kg |
|---|
