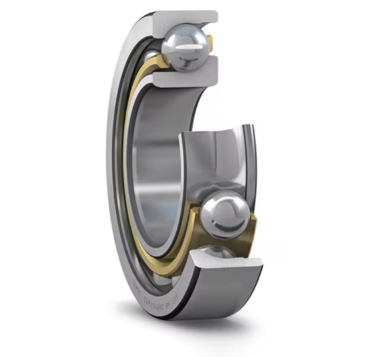

Single Row Angular Contact Ball Bearing – 7324 BCBM

The SKF 7324 BCBM is a high-performance single row angular contact ball bearing engineered to accommodate simultaneous radial and axial loads, with the axial load acting in only one direction. With a 40° contact angle, it efficiently supports high-speed applications while handling significant axial forces. Its robust design ensures durability, making it ideal for industrial machinery, pumps, and precision applications requiring reliable load-bearing capabilities.

Specifications:

• Bearing Type: Single Row Angular Contact Ball Bearing
• Bore Diameter: 120 mm
• Outside Diameter: 260 mm
• Width: 55 mm
• Contact Angle: 40°
• Product Net Weight: 13.5 kg
• eClass Code: 23-05-08-03
• UNSPSC Code: 31171531
