Description

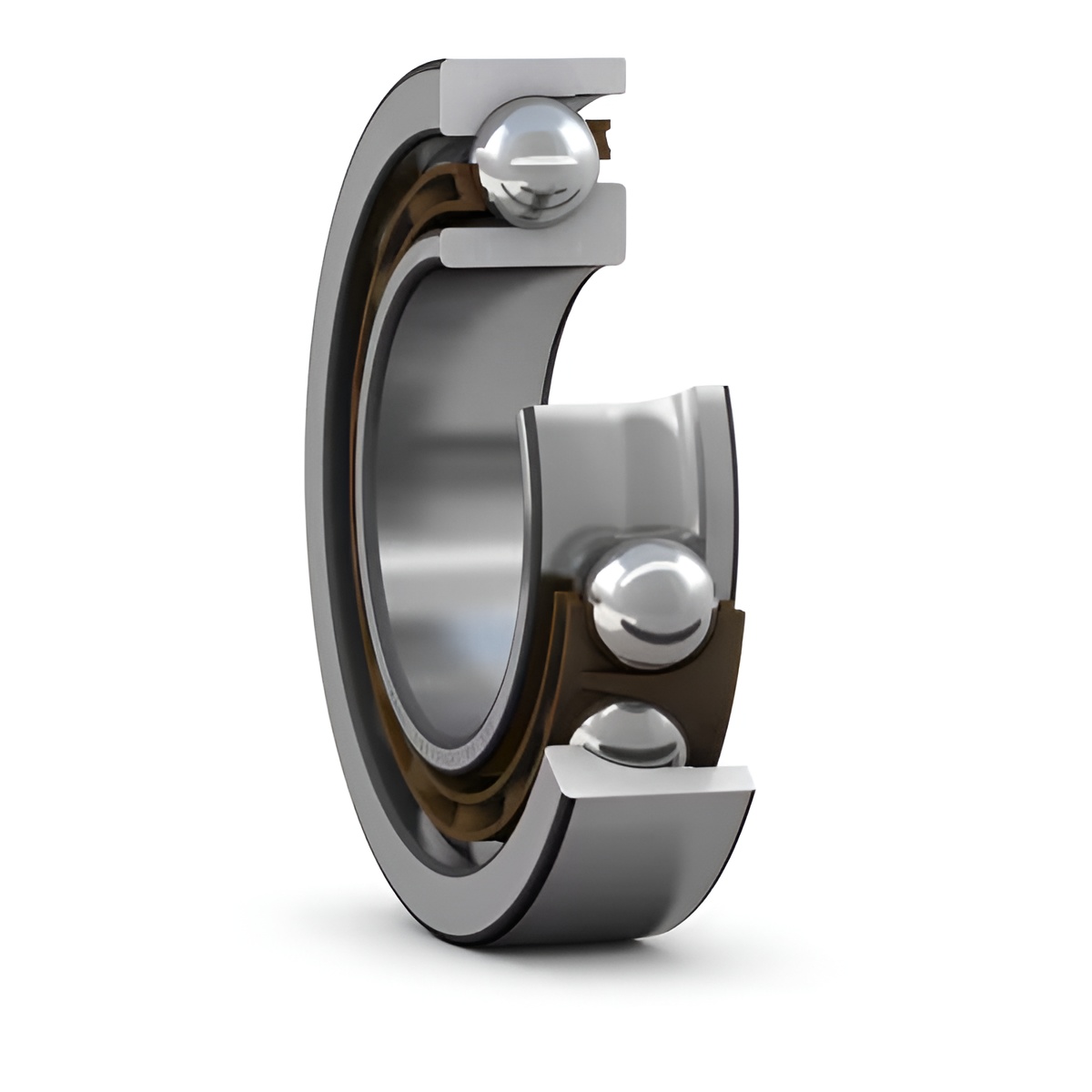

The 7308 BECBP is a single row angular contact ball bearing engineered to support combined radial and axial loads, with the axial load acting in a single direction. Its design allows for high-speed operation and is particularly suited for applications requiring precise axial load handling.
Featuring a 40 mm bore and 90 mm outside diameter, this bearing has a contact angle of 40°, providing a basic dynamic load rating of 50 kN and a static load rating of 32.5 kN. The bearing incorporates a non-metallic cage and one-piece inner and outer rings to ensure durability, smooth operation, and extended service life.
Manufactured from high-quality bearing steel with Class P6 tolerance, the 7308 BECBP is ideal for high-speed machinery, precision equipment, and other applications where reliable support for radial and unilateral axial loads is critical. Its design simplifies installation and maintenance.
Specifications
| Attribute | Details |
|---|---|
| Part Number | 7308 BECBP |
| Bearing Type | Single row angular contact ball bearing |
| Bore Diameter | 40 mm |
| Outside Diameter | 90 mm |
| Width | 23 mm |
| Contact Angle | 40° |
| Number of Rows | 1 |
| Cage | Non-metallic |
| Ring Type | One-piece inner and outer rings |
| Axial Internal Clearance | Not applicable |
| Matched Arrangement | No |
| Universal Matching Bearing | Yes |
| Matched Condition | Axial clearance CB |
| Tolerance Class | Class P6 (P6) |
| Sealing | Without |
| Lubricant | None |
| Coating | Without |
| Basic Dynamic Load Rating | 50 kN |
| Basic Static Load Rating | 32.5 kN |
| Reference Speed | 9,500 r/min |
| Limiting Speed | 10,000 r/min |
| Material | Bearing steel |
| Indicative Carbon Footprint | 2.2 kg CO2e |
| Net Weight | 0.611 kg |
| eClass Code | 23-05-08-03 |
| UNSPSC Code | 31171531 |
