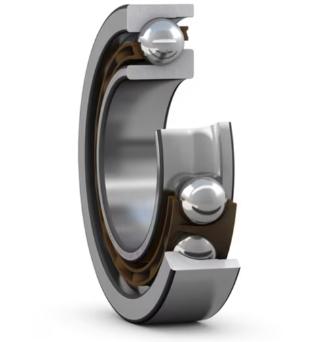

Single Row Angular Contact Ball Bearing – 7306 BEP

The 7306 BEP Single Row Angular Contact Ball Bearing is engineered to handle both radial and axial loads simultaneously, with the axial load acting in one direction only. This high-speed bearing can operate at speeds up to 12,000 r/min, making it suitable for applications where high rotational speed and high axial load capacity are critical.

It features a 40° contact angle for improved axial load handling and uses bearing steel for durability. The non-metallic cage ensures smooth operation while minimizing maintenance. With a limiting speed of 12,000 r/min, the bearing is ideal for both industrial machinery and high-speed applications.

Specification:

• Bore Diameter: 30 mm

• Outer Diameter: 72 mm

• Width: 19 mm

• Contact Angle: 40°

• Load Ratings: 32.5 kN (dynamic), 19.3 kN (static)

• Speed Rating: 12,000 r/min (both reference and limiting)

• Number of Rows: 1

• Cage Type: Non-metallic

• Material: Bearing steel

• Lubrication: None

• Sealing: Without

• Axial Internal Clearance: Not applicable

• Tolerance Class: Normal

• Net Weight: 0.331 kg
