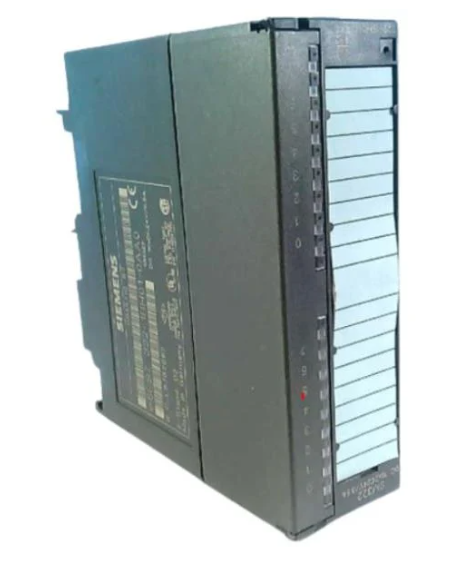

SIMATIC S7-300 Digital Output Module SM 322 – 6ES7322-1BH01-0AA0

The Siemens 6ES7322-1BH01-0AA0 is a digital output module for the SIMATIC S7-300 series, designed to provide 16 digital outputs at 24 V DC with a current rating of 0.5 A per output. The module supports isolation for enhanced protection and can handle a total current of 4 A per group, with a maximum of 8 A per module. It is ideal for various automation tasks requiring precise control over digital output signals. Additionally, this product is currently in the phase-out process, with the discontinuation effective as of October 1, 2023. Please contact Siemens for support or alternative recommendations.

Specifications

• Product type: Digital output module

• Series: SIMATIC S7-300

• Model: SM 322

• Outputs: 16 digital outputs

• Output voltage: 24 V DC

• Output current: 0.5 A per output

• Total current/group: 4 A

• Total current/module: 8 A

• Connector type: 1x 20-pole

• Isolation: Yes

• Net weight: 0.244 kg

• Packaging dimension: 12.80 x 15.30 x 5.00 cm

• Country of origin: Germany
