Description

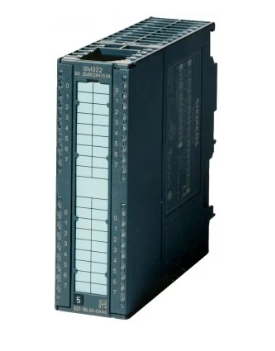

The 6ES7322-1BL00-0AA0 is a Digital Output Module (SM 322) designed for the SIMATIC S7-300 automation system. With 32 isolated digital outputs, this module supports 24 V DC at 0.5A per channel, offering a total current capacity of 4 A per group (16 A per module). Its 40-pole connection enables compact wiring solutions for space-constrained panels. Ideal for high-density output applications, this module is being phased out since 01.10.2023, and is suited for systems not yet transitioned to newer platforms.
Specifications
-
Product type: Digital Output Module (SM 322)
-
Output channels: 32 DO
-
Voltage/Current rating: 24 V DC, 0.5 A per output
-
Max current: 4 A per group / 16 A per module
-
Connection type: 1x 40-pole
-
System compatibility: SIMATIC S7-300
-
Net weight: 0.309 kg
-
Packaging dimensions: 12.80 x 15.20 x 5.00 cm
-
Country of origin: Germany
