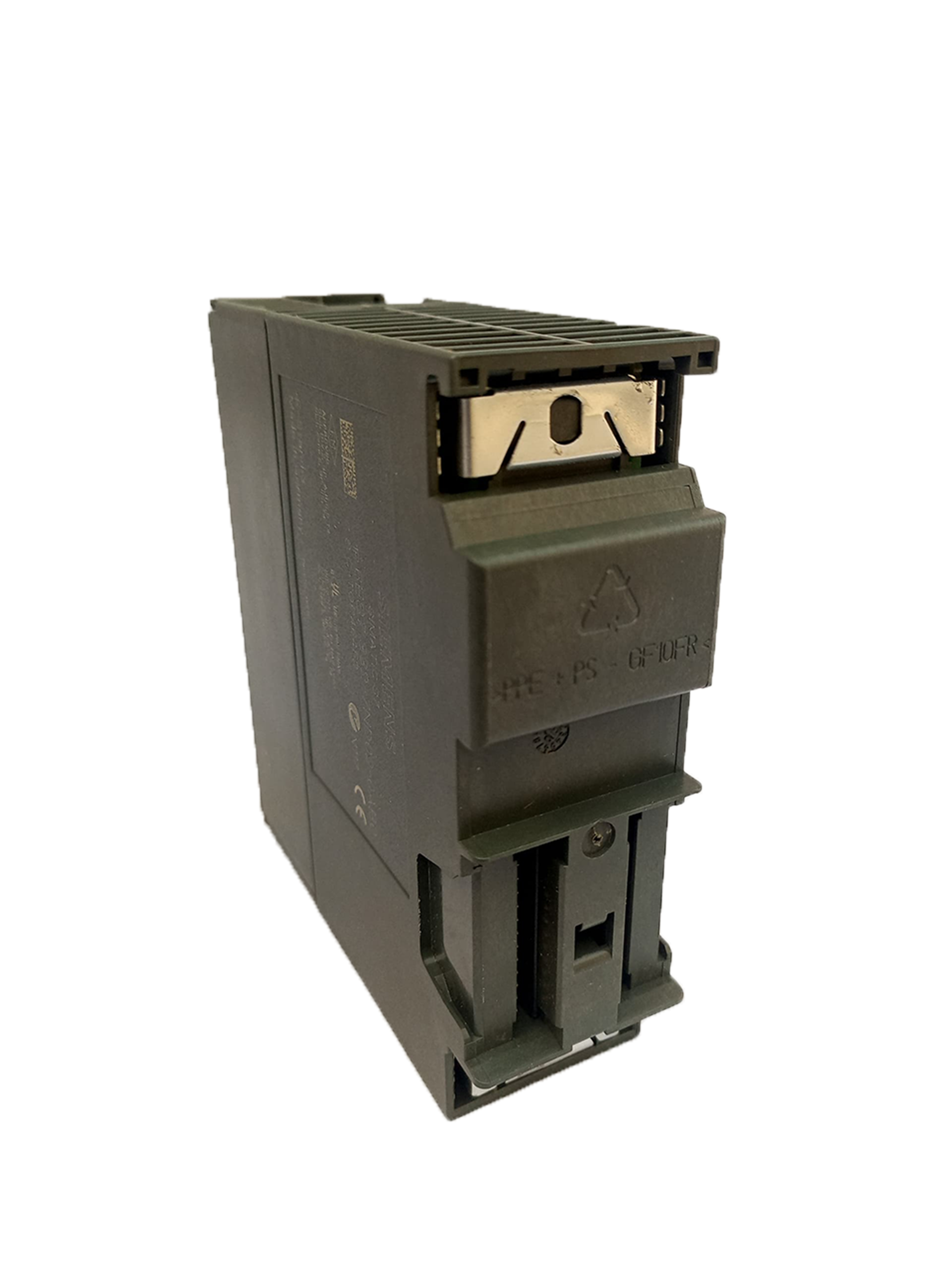

SIMATIC S7-300 Analog Output Module SM 332 – 6ES7332-5HB01-0AB0

The Siemens 6ES7332-5HB01-0AB0 is an analog output module for the SIMATIC S7-300 series, designed for use in industrial automation applications. The module features 2 analog outputs (AO) with U/I (voltage and current) support and provides 11/12-bit resolution for high-precision output. It is isolated, ensuring protection against electrical interference. The module is equipped with a 20-pole connector and allows for removal and insertion even with the active backplane bus in place, providing enhanced flexibility and ease of installation.

Please note, this product is currently in the phase-out process and will be discontinued as of October 1, 2023. For further inquiries, you can contact Siemens for available support options.

Specifications

• Product type: Analog output module

• Series: SIMATIC S7-300

• Model: SM 332

• Outputs: 2 analog outputs (U/I)

• Resolution: 11/12 bits

• Connector type: 20-pole

• Isolation: Yes

• Backplane compatibility: Removable/insertion with active backplane bus

• Net weight: 0.246 kg

• Packaging dimension: 13.10 x 15.20 x 5.20 cm

• Product status: Phase-out since 01.10.2023

• Country of origin: Germany
