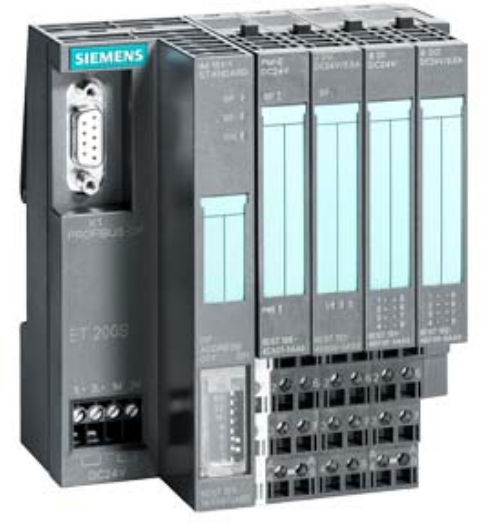

SIMATIC DP Interface Module IM 151-1 Standard – 6ES7151-1AA05-0AB0

The 6ES7151-1AA05-0AB0 is a SIMATIC DP Interface Module IM 151-1 Standard designed for ET 200S distributed I/O systems. It facilitates reliable PROFIBUS DP communication, supporting both V0 and V1 protocols. Each unit manages a data volume of 244 bytes for both inputs and outputs, and allows connection of up to 63 I/O modules within a 2-meter module width range. Bus connection is via 9-pin D-sub. This module includes a termination module and has been discontinued since 23.02.2020. The recommended successor is 6ES7151-1AA06-0AB0.

Specifications

• Product type: Interface Module

• Series: SIMATIC DP for ET 200S

• Data volume: 244 bytes input + 244 bytes output

• Max I/O modules supported: 63

• Supported protocols: PROFIBUS DP V0/V1

• Connection: 9-pin D-sub

• Packaging Quantity: 1 piece

• Net weight: 0.173 kg

• Packaging dimensions: 8.50 x 12.70 x 7.10 cm

• Country of origin: Germany
