Description

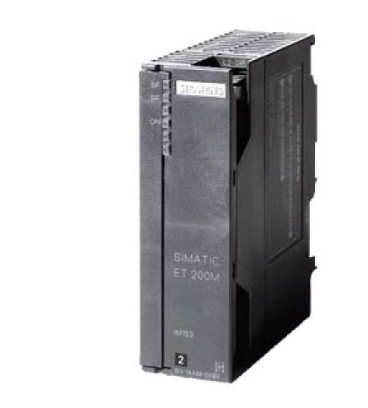

The SIMATIC DP Interface Module IM 153-1 — Part Number 6ES7153-1AA02-0XB0 allows seamless integration of ET 200M distributed I/O modules into S7-300 PLC systems via PROFIBUS DP. With a maximum transmission speed of 12 Mbit/s, it ensures fast and reliable communication across industrial networks.
The module operates on a 24 V DC supply voltage and supports connection of up to 8 S7-300 modules, making it suitable for medium-sized automation setups. Its compact dimensions of 40 × 125 × 117 mm and lightweight design (360 g) allow easy installation within control panels while minimizing space usage.
Ideal for factory automation, process control, and machinery applications, the IM 153-1 module provides a robust and reliable interface for distributed I/O systems.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMATIC S7 |
| Model | IM 153-1 |
| Part Number | 6ES7153-1AA02-0XB0 |
| Product Type | Interface Module |
| Communication Interface | PROFIBUS DP |
| Maximum Transmission Speed | 12 Mbit/s |
| Supported Modules | Up to 8 S7-300 modules |
| Supply Voltage | 24 V DC |
| Dimensions (L × W × H) | 40 × 125 × 117 mm |
| Net Weight | 0.36 kg |
