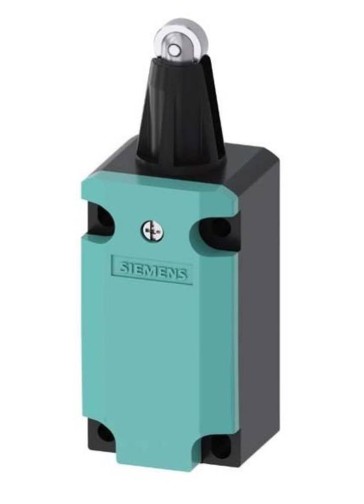

Siemens Position Switch – 3SE5112-0CD02

The Siemens 3SE5112-0CD02 position switch is engineered for precision and durability in industrial automation systems. Housed in a robust metal enclosure (40 mm) designed to meet EN 50041 standards, it ensures reliable performance in tough environments.

This switch features 1 normally open (NO) and 1 normally closed (NC) quick-action contact, making it suitable for detecting end positions and motion limits. The integrated roller plunger comes with a 3 mm overtravel and a 13 mm stainless steel roller, delivering smooth mechanical operation and extended lifecycle even under demanding mechanical stress.

Ideal for machine and plant applications, this position switch offers M20 x 1.5 cable entry, providing easy and secure electrical connectivity.

Specifications

• Product type: Position Switch

• Enclosure: Metal, 40 mm width, compliant with EN 50041

• Contacts: 1 NO + 1 NC, quick action

• Actuator: Roller plunger

• Overtravel: 3 mm

• Roller material: Stainless steel

• Roller diameter: 13 mm

• Cable entry: 1x M20 x 1.5

• Product status: Active

• Net weight: 0.379 kg

• Package dimensions (L x W x H): 43.00 x 49.00 x 127.00 mm

• Country of origin: Germany

• RoHS compliant since: 01.07.2006
