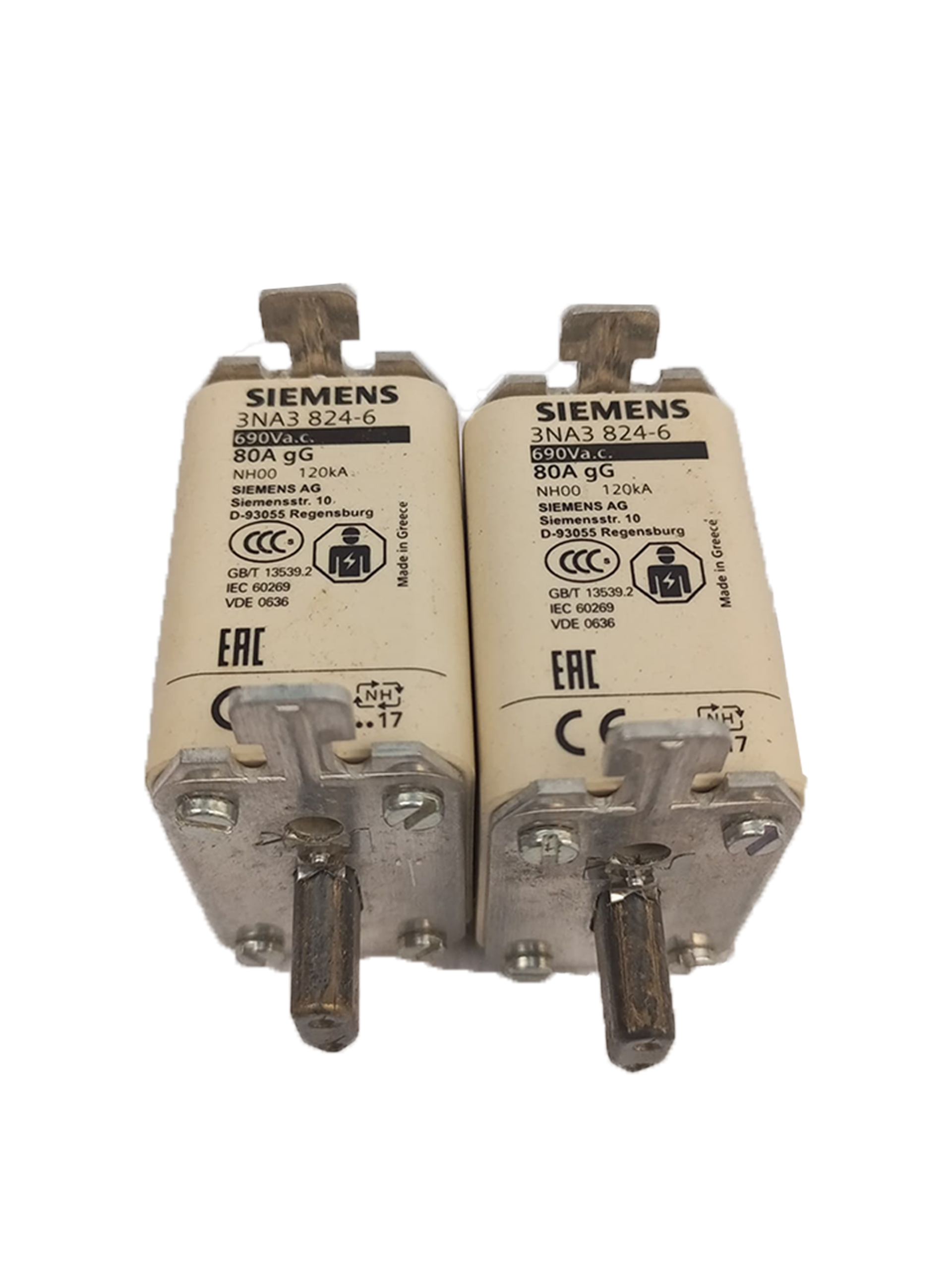

Siemens LV HRC Fuse Element – 3NA3824-6

The Siemens 3NA3824-6 is a high-performance Low Voltage HRC fuse element from the NH00 series, designed to provide dependable protection for cables and electrical equipment. Rated at 80 A, this gG class fuse ensures full-range protection against both overload and short-circuit conditions.

Operating at up to 690 V AC and 250 V DC, it features a front indicator for quick visual status checks and live grip lugs for easy and safe installation. Manufactured to meet strict quality and safety standards, this fuse element is ideal for industrial control panels, switchboards, and power distribution systems.

Compliant with RoHS directives and equipped with an active product status, it supports sustainable and long-term applications in various low-voltage installations.

Specifications:

• Product Name: LV HRC Fuse Element

• Article Number: 3NA3824-6

• Fuse Size: NH00

• Rated Current (In): 80 A

• Utilization Category: gG (General Purpose)

• Rated Voltage (AC): 690 V

• Rated Voltage (DC): 250 V

• Indicator Type: Front Indicator

• Terminal Style: Live Grip Lugs

• Net Weight: 0.199 kg

• Dimensions (L x W x H): 83 x 95 x 67 mm

• Minimum Order Quantity: 3 pieces

• Commodity Code: 85361090

• Country of Origin: Greece

• Product Family: LV HRC Fuse Links

• RoHS Compliance: Since 01.09.2006

• WEEE Take-Back Obligation: Yes
