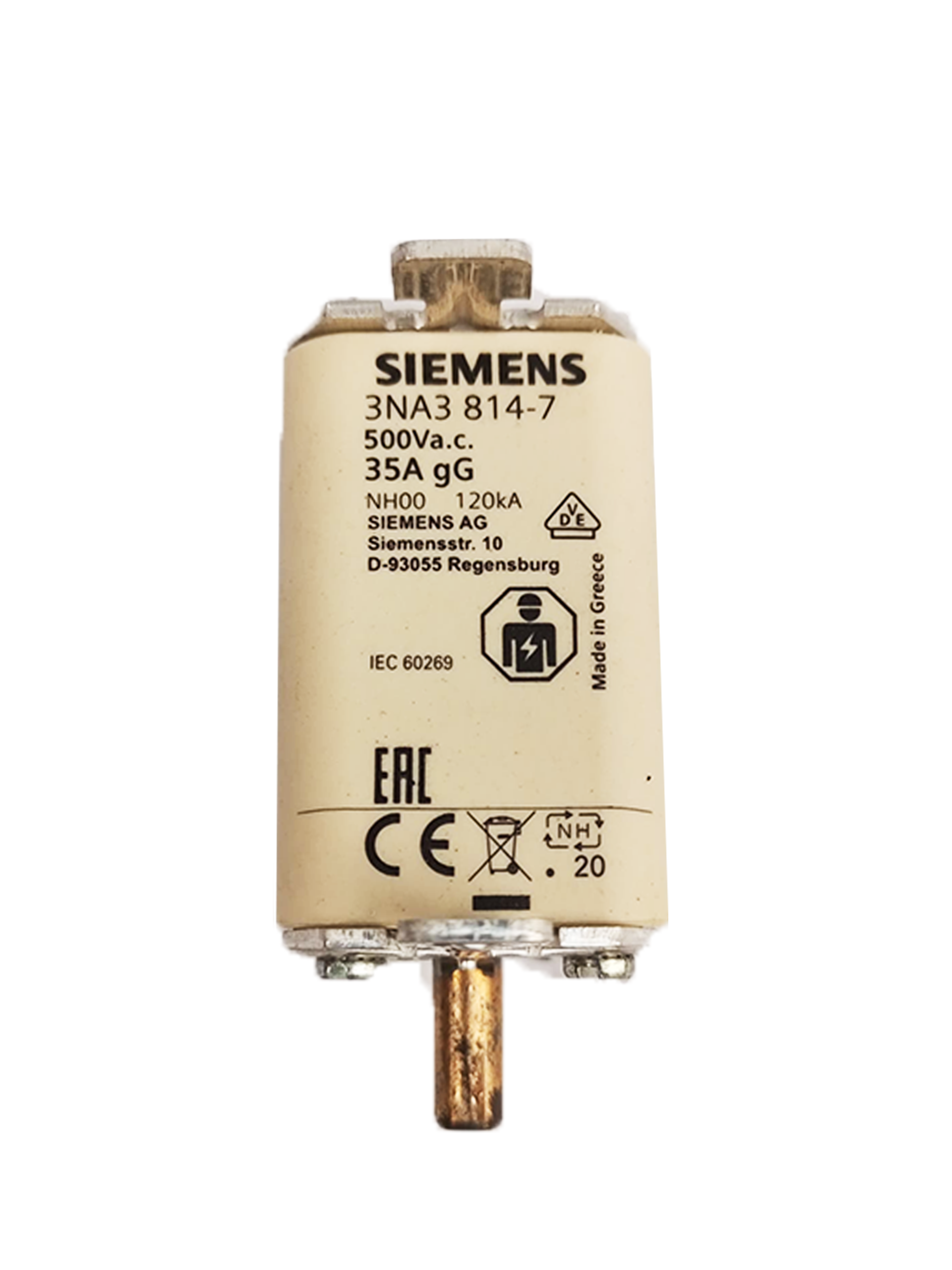

Siemens LV HRC Fuse Element – 3NA3 814-7

The Siemens 3NA38147 is a low-voltage HRC fuse element engineered for effective protection of cables and electrical lines against overloads and short circuits. Featuring a gG utilization category, this NH00-size fuse is rated at 35 A, with voltage limits of 500 V AC and 250 V DC.

It is equipped with a front fuse status indicator for quick diagnostics and live grip lugs for safe installation and removal. This fuse provides robust protection in industrial distribution systems, control panels, and other low-voltage applications.

Made in Greece, this RoHS-compliant fuse adheres to strict industry standards. Although non-returnable, it meets WEEE take-back obligations and REACH requirements.

Specifications:

• Product Name: Siemens LV HRC Fuse Element

• Article Number: 3NA38147

• Type: NH00 Fuse Link

• Rated Current (In): 35 A

• Utilization Category: gG (general-purpose fuse for line/cable protection)

• Rated Voltage: 500 V AC / 250 V DC

• Fuse Indicator: Front status indicator

• Live Grip Lugs: Yes

• Mounting Style: NH00 standard installation

• Net Weight: 0.441 lb (approx. 0.2 kg)

• Packaging Dimensions (Inches): 3.268 x 3.74 x 2.638

• Packaging Quantity: 1 piece

• Minimum Order Quantity: 3 pieces

• Compliance: RoHS since 10/01/2006

• WEEE Take-Back Obligation: Yes

• REACH Substance: Lead (CAS No. 7439-92-1 > 0.1% w/w)

• SCIP Number: 0ab30ae9-ec52-4db5-a99b-e6765c3e42f9

• EAN: 4001869073255

• UPC: 754554948027

• Commodity Code: 85361050

• Country of Origin: Greece
