Description

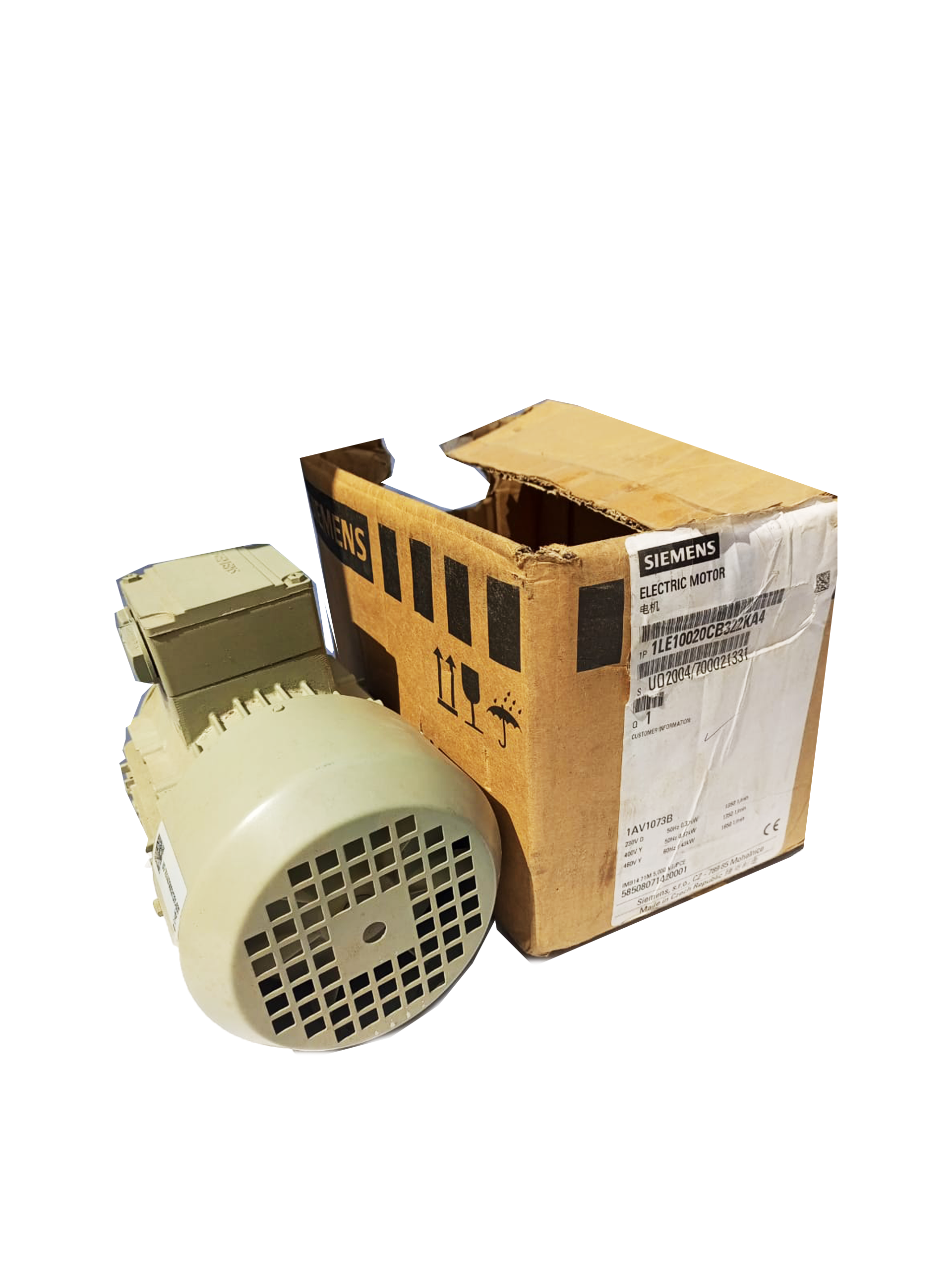

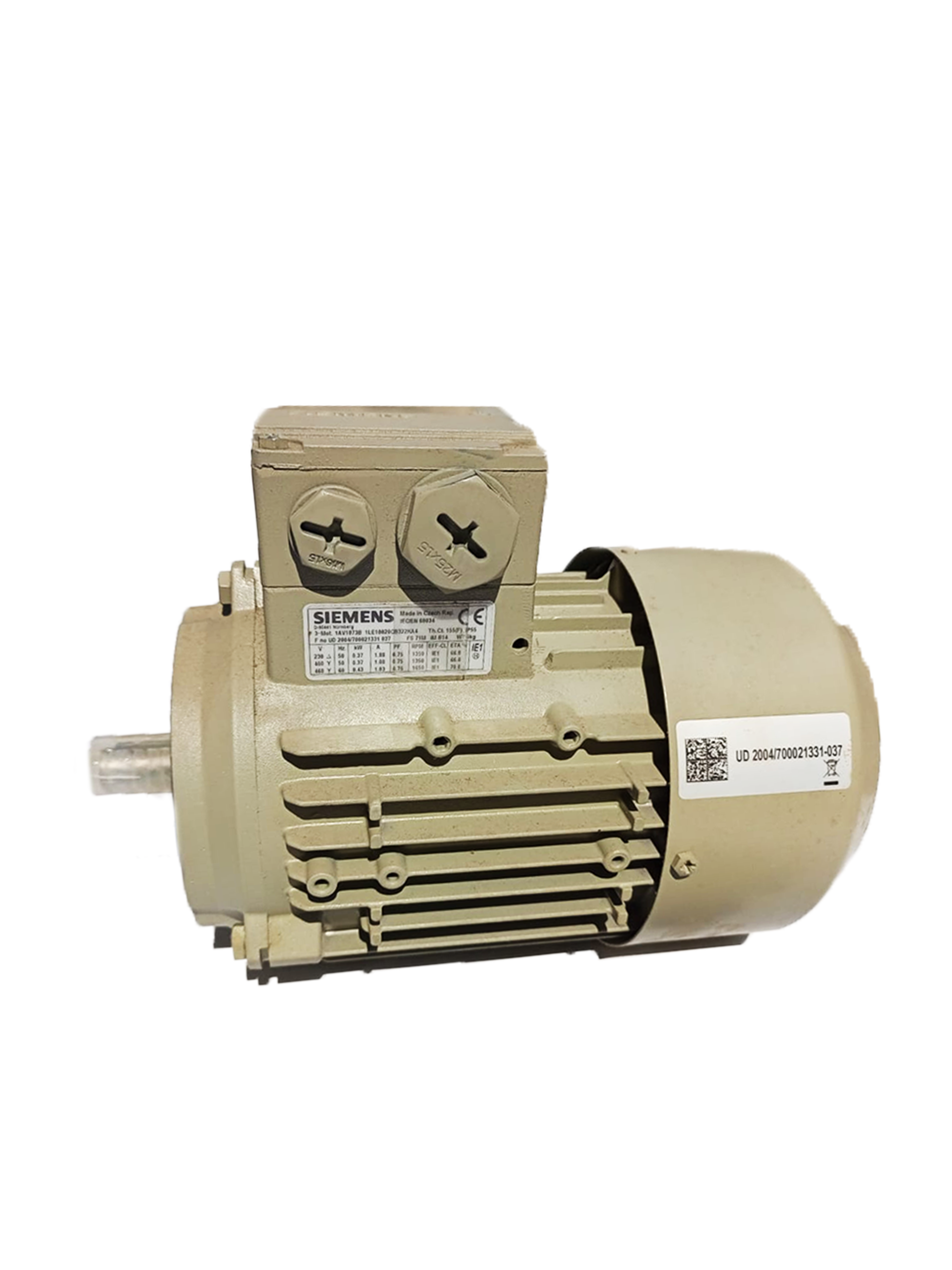

The 1LE1002-0CB32-2KA4 is a general-purpose low-voltage AC motor designed with a squirrel-cage rotor, self-cooled, and aluminum enclosure for standard industrial applications. With an IP55 rating and temperature class 155(F) based on 130(B), it ensures reliable operation under harsh conditions. Operating at 0.37 kW (50Hz) or 0.43 kW (60Hz), this motor is mounted in IM B14 position with standard flange FT85 (C105) and comes without motor protection.
Note: The product complies with IE1 Efficiency (outside EEA).
Specifications:
-
Article Number: 1LE1002-0CB32-2KA4
-
Net Weight: 13.228 lb (~6 kg)
-
Supply Voltage:
-
3 AC 50 Hz 230 V Δ / 400 V Y
-
3 AC 60 Hz 460 V Y
-
-
Country of Origin: Czech Republic
-
Lifecycle Status: Discontinued (since 04.01.2025)
-
RoHS Compliant: Since 22.07.2019
