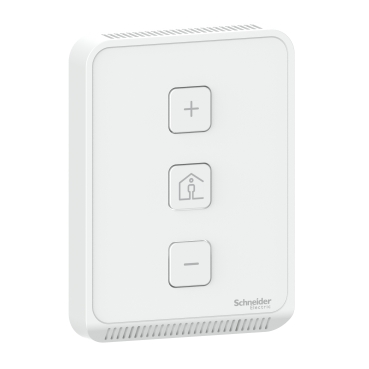

Sensor Cover Plate – SXWSC3XSELXX
The SXWSC3XSELXX is a SmartX cover plate for living space sensors used with SmartX IP controllers. Designed without a display, it provides reliable operation with integrated override setpoint capability and LED local signaling.
Original price was: $40.20.$34.48Current price is: $34.48.
(Save $5.72)
Out of stock
Description
The SmartX living space sensor family is designed for seamless integration with SmartX IP controllers using EcoStruxure Building Operation software. The SXWSC3XSELXX cover plate connects through the RJ-45 sensor bus, which provides both power and communication, ensuring quick installation and dependable performance in building environments.
This cover does not include a display but incorporates local LED signaling in red, green, and blue to indicate heating or air-conditioning application status. It also supports override functionality, enabling occupants to switch to timed occupied mode for after-hours operation, enhancing comfort and energy management flexibility.
Compact and durable, the cover measures 20 × 115 × 85 mm and is finished in matte white to suit modern interiors. Certified to CE, RCM, EAC, and ICES-003 standards, it offers flame-retardant performance per UL94-V0 and an IP20 protection rating. Designed for living space applications, it provides reliable environmental interaction while maintaining compliance with industry standards such as UL 916 and FCC Part 15 Class B.
Specifications
| Specification | Value |
|---|---|
| Part number | SXWSC3XSELXX |
| Range | SpaceLogic |
| Product name | SmartX Living Space Sensor |
| Product type | Cover plate |
| Device application | HVAC |
| Functions | Temperature control, Fan speed control, Override |
| Display type | None |
| Local signaling | 1 RGB LED (red, green, blue) |
| Supply | Via sensor bus (RJ-45) |
| Device presentation | Cover only (sensor base not included) |
| Location | Living space |
| Surface finish | Matte |
| Colour | White |
| Certifications | CE, RCM, EAC, ICES-003 |
| Standards | UL 916, FCC Part 15 class B |
| Ingress protection | IP20 |
| Flame retardance | UL94-V0 |
| Dimensions (L × H × W) | 20 × 115 × 85 mm |
Additional information
| Weight | 0.34 kg |
|---|---|
| Dimensions | 20 × 85 × 115 mm |
