Description

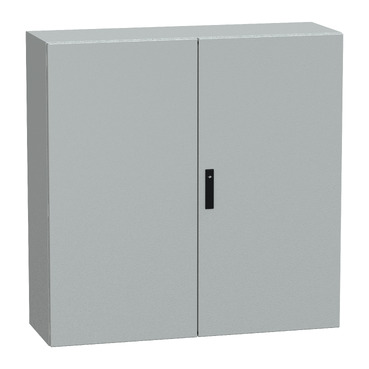

The Spacial CRNG Wall-Mount Enclosure is a high-quality, wall-mounted steel enclosure engineered for versatile applications. Part of the PanelSeT CRNG range, this enclosure offers reliable protection for electrical and control systems in commercial and industrial settings.
With a plain, reversible door and a compact design (1200 × 1200 × 400 mm), the enclosure ensures flexibility in wall-mount installation without a separate mounting plate. Its sides are made from single folded sections, while the back is welded with a double profile forming a sealed protected area. The body and door are constructed from steel with security glass, finished in durable RAL7035 epoxy polyester powder for long-lasting performance.
The enclosure features a 3 mm double-bar lock, IP66 ingress protection, and IK08 impact resistance, providing both environmental and mechanical security. It includes two bottom cable gland plates, one body, and one lock for comprehensive installation support.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PanelSeT CRNG |
| Product Type | Compact Steel Wall-Mount Enclosure |
| Product Name | PanelSeT CRNG |
| Model | NSYCRNG1212400D |
| Application | Multi-purpose |
| Enclosure Nominal Height | 1200 mm |
| Enclosure Nominal Width | 1200 mm |
| Enclosure Nominal Depth | 400 mm |
| Door Type | Plain, reversible |
| Installation Type | Wall-Mounting |
| Material | Steel with security glass |
| Finish | Epoxy Polyester Powder, RAL7035 |
| Lock | 3 mm double-bar |
| Ingress Protection | IP66 |
| Impact Protection | IK08 |
| Included Accessories | 1 Body, 1 Lock, 2 Cable Gland Plates (Bottom), 2 Doors |
| Weight | 89 kg |
