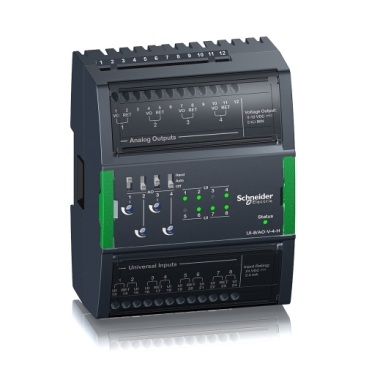

SpaceLogic UI-8/AO-V-4-H I/O Module – SXWUI8V4H10001

The SpaceLogic UI-8/AO-V-4-H I/O Module from Schneider Electric is a versatile expansion module designed for use with the SpaceLogic AS-P Server within the EcoStruxure Building Operation platform. It combines 8 universal input channels with 4 analog voltage output channels, allowing it to handle both monitoring and control functions in building automation systems.

The universal inputs support a wide range of signals, including temperature, pressure, flow, status signals, and other sensor inputs, making them suitable for HVAC and environmental monitoring applications. The analog voltage outputs are designed to control devices such as actuators and other analog-controlled equipment.

Each analog output includes hand/off/auto override switches, allowing technicians to manually override signals during commissioning, testing, or maintenance. This provides additional flexibility and control in automation environments.

The module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001) for installation and electrical connection. It features a UL94V0-5VB flame-retardant housing, IP20 protection, and multiple international certifications, ensuring safe and reliable operation in control cabinets.

With compact dimensions of 114 mm in height, 90 mm in width, and 64 mm in depth, the module integrates easily with other SpaceLogic components while delivering powerful I/O expansion capabilities.

Specifications
