Description

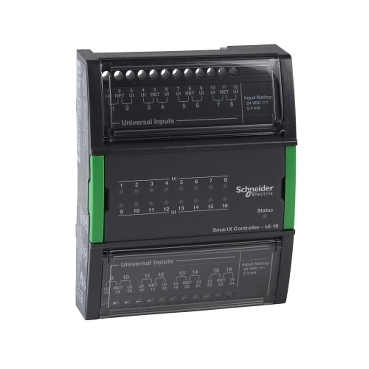

The SpaceLogic UI-16 Universal Input Module from Schneider Electric is a flexible I/O expansion module designed for use with the SpaceLogic AS-P Server within the EcoStruxure Building Operation platform. It provides 16 universal input channels, allowing integration with a wide variety of sensors and field devices used in building control systems.
These universal inputs are ideal for monitoring temperature, pressure, flow, status signals, and other analog or digital points, making the module highly versatile for HVAC, energy management, and building monitoring applications.
The module is designed to work with the SpaceLogic Central I/O Terminal Base (SXWTBIOW110001), which provides the required mounting and electrical interface for installation in automation panels.
Built with a UL94V0-5VB flame-retardant enclosure and IP20 protection rating, the UI-16 module ensures safe and reliable operation in control cabinet environments. Its compact dimensions of 114 mm in height, 90 mm in width, and 64 mm in depth allow easy integration alongside other SpaceLogic modules.
Specifications
| Feature | Specification |
|---|---|
| Product Name | SpaceLogic UI-16 I/O Module |
| Brand | Schneider Electric |
| Product Type | Universal Input I/O Expansion Module |
| Device Short Name | UI-16 |
| Number of Inputs | 16 Universal Inputs |
| Supported Input Types | Temperature, Pressure, Flow, Status and other analog/digital signals |
| Application | Building Automation / HVAC Monitoring |
| Required Terminal Base | SpaceLogic Central I/O Terminal Base (SXWTBIOW110001) |
| Power Consumption | 1.8 W |
| Flame Retardance | UL94V0-5VB |
| Certifications | CE, FCC Part 15 Class B, ICES-003, RCM |
| Storage Temperature | −20…70 °C |
| Height | 114 mm (4.5 in) |
| Width | 30 mm |
| Depth | 64 mm (2.5 in) |
| Weight | 0.146 kg |
