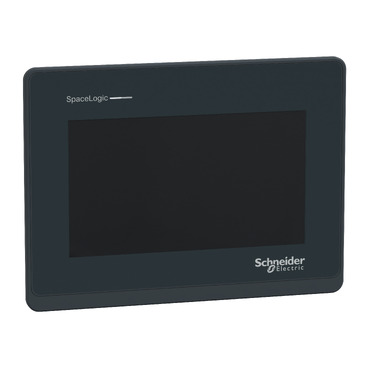

SpaceLogic Operator Display 7 – HMIST6400SL
The Schneider Electric SpaceLogic 7” Operator Display is a panel-mounted HMI for plant and zone controller monitoring. It features a resistive touch screen, BACnet/IP communication, and durable construction, delivering clear visualization and reliable integration in building automation systems.
Original price was: $522.60.$513.60Current price is: $513.60.
(Save $9.00)
Out of stock
Description
The Schneider Electric SpaceLogic 7” Operator Display is a touch panel HMI engineered for seamless monitoring and control of plant and zone controllers within building automation systems. Its colour TFT LCD screen with 800 × 480 pixel resolution provides sharp, clear, and intuitive visualisation.
Equipped with Ethernet 10/100BASE communication and BACnet/IP protocol support, the display integrates easily into building networks. Its single-touch resistive panel and adjustable brightness ensure reliable operation, while the aluminium front and PC enclosure provide strength and durability in demanding equipment room environments.
Operating with a 24 V DC ±20% external power supply and consuming only 9 W, this HMI is energy efficient and compact, measuring 208 × 45 × 153 mm. Certified to CE and UL standards and compliant with international directives, it offers a safe, dependable, and long-lasting solution for building management applications.
Specification
| Attribute | Details |
|---|---|
| Product name | SpaceLogic Operator Display ST6 |
| Part number | HMIST6400SL |
| Product type | Touch panel screen |
| Display size | 7 inch |
| Display type | Colour TFT LCD |
| Display resolution | 800 × 480 pixels WVGA |
| Display colours | 16 million |
| Brightness | 16 levels |
| Touch panel | Single touch analogue resistive |
| Character font | ASCII, ASCII (European characters) |
| Communication ports | Ethernet 10/100BASE |
| Protocol | BACnet/IP |
| Supply voltage | 24 V DC ±20% |
| Power consumption | 9 W |
| Inrush current | 30 A |
| Net weight | 0.8 kg |
| Dimensions | 208 × 45 × 153 mm |
| Material (enclosure) | PC |
| Material (front) | Aluminium |
| Mounting | Panel-mounted |
| Ambient temperature (operation) | 0…50 °C |
| Ambient temperature (storage) | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Certifications | CE, UL |
| Standards | EN 61000-6-4, EN 61000-6-2, EN 61131-2, UL 61010-2-201, IEC 61326-1 |
| Directives | 2014/35/EU (Low Voltage), 2014/30/EU (EMC) |
| Product brand | Schneider Electric |
Additional information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 45 × 208 × 153 mm |
