Description

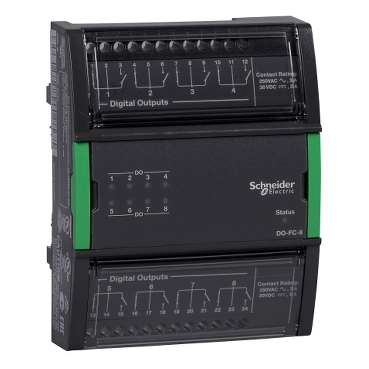

The SpaceLogic DO-FC-8 Digital Output Module from Schneider Electric is an I/O expansion module designed to extend the capabilities of the SpaceLogic AS-P Server within the EcoStruxure Building Operation platform. It provides eight digital Form C outputs, enabling reliable switching and control of building automation equipment.
The module is designed for direct load applications, making it suitable for controlling devices such as relays, fans, lighting circuits, and other digital-controlled equipment commonly used in HVAC and building management systems.
For installation, the DO-FC-8 module requires the SpaceLogic Central I/O Terminal Base (SXWTBIOW110001), which provides the necessary connections and mounting support. The module features a UL94V0-5VB flame-retardant enclosure and IP20 protection, ensuring durability and safety in control panel environments.
With a compact size of 114 mm in height, 90 mm in width, and 64 mm in depth, the DO-FC-8 module is designed for efficient integration into building automation panels. It also supports a wide operating environment, including storage temperatures from −20 °C to 70 °C, ensuring reliable performance across different installations.
Specifications
| Feature | Specification |
|---|---|
| Product Name | SpaceLogic DO-FC-8 I/O Module |
| Brand | Schneider Electric |
| Product Type | Digital Output I/O Expansion Module |
| Device Short Name | DO-FC-8 |
| Number of Outputs | 8 Digital Outputs |
| Output Type | Form C Digital Outputs |
| Application | Direct Load Control / Building Automation |
| Required Terminal Base | SpaceLogic Central I/O Terminal Base (SXWTBIOW110001) |
| Power Consumption | 2.2 W |
| Flame Retardance | UL94V0-5VB |
| Certifications | CE, FCC Part 15 Class B, ICES-003, RCM |
| Storage Temperature | −20…70 °C |
| Height | 114 mm (4.5 in) |
| Width | 30 mm (1.2 in) |
| Depth | 64 mm (2.5 in) |
| Weight | 0.209 kg |
