Description

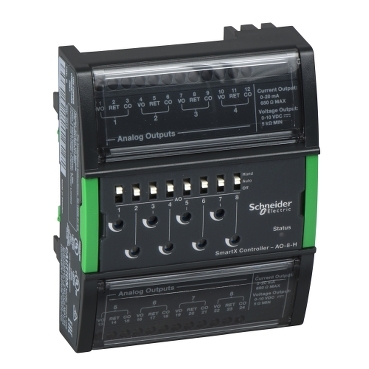

The SpaceLogic AO-8-H Analog Output Module from Schneider Electric is an I/O expansion module designed to extend the functionality of the SpaceLogic AS-P Server within the EcoStruxure Building Operation platform. It provides 8 analog output channels capable of delivering voltage or current signals, allowing seamless control of field devices such as actuators and other analog-controlled equipment.
Each output channel includes hand/off/auto override switches, enabling flexible manual control and easier commissioning or maintenance. This feature makes the module particularly useful for building automation applications where reliable device control is essential.
The AO-8-H module is designed for central I/O installations and requires the SpaceLogic Central I/O Terminal Base (SXWTBIOW110001) for proper mounting and connectivity. It operates with a 24 V DC power supply and features a robust enclosure with UL94V0-5VB flame-retardant material and IP20 protection, ensuring durability and safe operation.
With a compact design measuring 114 mm in height, 90 mm in width, and 64 mm in depth, the module can be easily installed in control cabinets. It operates in temperatures ranging from 0 to 50 °C with storage capability between −20 and 70 °C, making it suitable for a wide range of building automation environments.
Specifications
| Feature | Specification |
|---|---|
| Product Name | SpaceLogic AO-8-H I/O Module |
| Brand | Schneider Electric |
| Product Type | I/O Expansion Module |
| Device Short Name | AO-8-H |
| Application | Building Automation / EcoStruxure BMS |
| Number of Outputs | 8 Analog Outputs |
| Output Type | Analog Voltage / Current |
| Rated Supply Voltage | 24 V DC |
| Power Consumption | 4.9 W |
| Mounting Requirement | SpaceLogic Central I/O Terminal Base (SXWTBIOW110001) |
| IP Degree of Protection | IP20 |
| Flame Retardance | UL94V0-5VB |
| Operating Temperature | 0…50 °C |
| Storage Temperature | −20…70 °C |
| Relative Humidity | 0–95% Non-condensing |
| Certifications | CE, FCC Part 15 Class B, ICES-003, RCM |
| Height | 114 mm (4.5 in) |
| Width | 90 mm (3.5 in / 3.6 in) |
| Depth | 64 mm (2.5 in) |
| Weight | 0.159 kg |
