Description

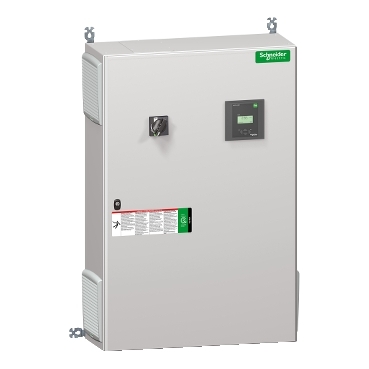

The Schneider Electric PowerLogic VarSet VLVAW2N03511AA Automatic Capacitor Bank is a high-performance power factor correction (PFC) solution designed for industrial and commercial applications. With a reactive power rating of 175kvar, it effectively compensates for inductive loads, helping reduce energy losses, improve system efficiency, and eliminate utility penalties.
Engineered for low harmonic environments, this capacitor bank supports networks with up to 4% voltage harmonics and 10% current harmonics, ensuring stable and reliable operation. It uses the advanced VarPlus Logic controller to automatically regulate compensation based on real-time load demand, optimizing performance and energy savings.
The unit features a wall-mounted enclosure with bottom cable entry, making it suitable for installations where floor space is limited. It also includes an integrated incomer circuit breaker for enhanced protection and easier installation.
With built-in Modbus RS485 communication, the system integrates seamlessly with EcoStruxure Power, enabling real-time monitoring, data analytics, and predictive maintenance. High-quality VarPlus capacitors compliant with IEC standards ensure long service life and dependable operation.
Its robust design and smart control features make it an excellent choice for facilities requiring automated and reliable power factor correction in a compact wall-mounted format.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | VLVAW2N03511AA |
| Range | PowerLogic (VarSet) |
| Product Type | Automatic PFC Capacitor Bank |
| Operating Mode | Automatic |
| Reactive Power Rating | 175 kvar |
| Rated Voltage | 400 V / 415 V AC, 50 Hz |
| Harmonic Tolerance | Up to 4% voltage / 10% current |
| Mounting Type | Wall Mounted |
| Cable Entry | Bottom Entry |
| Incomer Protection | Integrated Circuit Breaker |
| Controller | VarPlus Logic Controller |
| Communication | Modbus RS485 |
| Capacitor Type | VarPlus High-Endurance Capacitors |
| Standards & Certification | CE, IEC 61921, IEC 61439-1, IEC 61439-2, IEC 831-1 & 2 |
| Protection Rating | IP31 (Upgradeable to IP54) |
| Height | 1200 mm |
| Width | 800 mm |
| Depth | 300 mm |
| Weight | 131 kg |
