Description

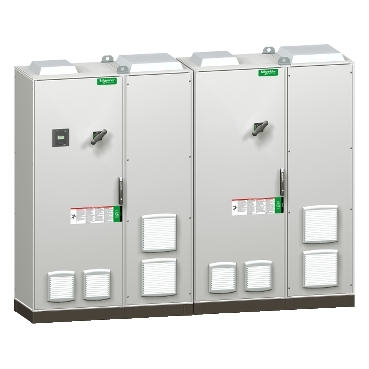

The Schneider Electric PowerLogic VarSet VLVAF8P03534AB Automatic Capacitor Bank is a high-performance power factor correction (PFC) solution designed to optimize energy efficiency and reduce electricity costs in industrial and commercial installations. With a reactive power capacity of 700kvar, it effectively compensates for inductive loads, minimizing penalties from utility providers and improving overall system performance.
Engineered for polluted harmonic networks, this capacitor bank includes a detuned reactor (DR3.8) with a tuning frequency of 190Hz, ensuring safe and reliable operation even in environments with up to 7% voltage harmonics or 20% current harmonics. The system automatically adjusts compensation levels using an intelligent controller from the VarPlus Logic family, ensuring optimal performance under varying load conditions.
Integrated with smart monitoring and measurement capabilities, the unit supports Modbus RS485 communication, enabling seamless connectivity with EcoStruxure Power and other power management systems. This allows real-time data tracking, predictive maintenance, and improved operational reliability.
Built with high-quality VarPlus capacitors compliant with IEC standards, the unit offers long service life and consistent performance. The robust floor-standing enclosure (IP31 rated, upgradeable to IP54) ensures durability and protection in industrial environments. With its large capacity and advanced features, this capacitor bank is ideal for facilities with dynamic or unstable loads requiring efficient and automated power factor correction.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | VLVAF8P03534AB |
| Range | PowerLogic (VarSet) |
| Product Type | Automatic PFC Capacitor Bank |
| Operating Mode | Automatic |
| Reactive Power Rating | 700 kvar |
| Rated Voltage | 400 V / 415 V AC, 50 Hz |
| Reactor Type | Detuned Reactor (DR3.8) |
| Tuning Frequency | 190 Hz |
| Harmonic Tolerance | Up to 7% voltage / 20% current |
| Controller | VarPlus Logic Controller |
| Communication | Modbus RS485 |
| Capacitor Type | VarPlus High-Endurance Capacitors |
| Standards & Certification | CE, IEC 61921, IEC 61439-1, IEC 61439-2, IEC 831-1 & 2 |
| Protection Rating | IP31 (Upgradeable to IP54) |
| Mounting Type | Floor Standing |
| Height | 2200 mm |
| Width | 1600 mm (capacitor), 1200 mm (reactor) |
| Depth | 600 mm |
| Maximum Weight | 1904 kg |
