Description

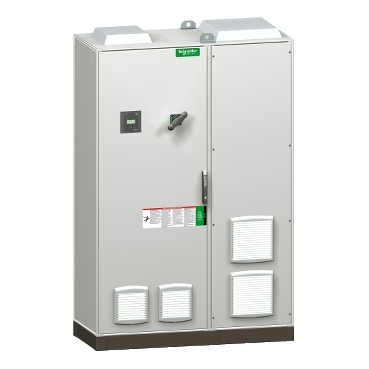

The Schneider Electric PowerLogic VarSet VLVAF6P03522AD Automatic Capacitor Bank is a high-performance solution for power factor correction in industrial and commercial installations. With a reactive power rating of 600kvar, it effectively compensates for inductive loads, reducing energy costs, eliminating utility penalties, and improving overall electrical system efficiency.
This model is equipped with a detuned reactor (DR4.2) featuring a tuning frequency of 215Hz, making it suitable for polluted harmonic networks with up to 7% voltage harmonics and 20% current harmonics. This ensures safe and reliable operation in environments with significant harmonic distortion.
The system includes an integrated incomer circuit breaker, providing enhanced protection and simplifying installation. Automatic compensation is managed by the VarPlus Logic controller, which continuously adjusts performance based on real-time load variations.
With built-in Modbus RS485 communication, the capacitor bank integrates seamlessly with EcoStruxure Power for advanced monitoring, analytics, and predictive maintenance. High-quality VarPlus capacitors ensure durability and long service life, meeting IEC standards for reliability.
Housed in a robust floor-standing enclosure (IP31, upgradeable to IP54), the unit is designed for industrial environments and features bottom cable entry for ease of installation. This capacitor bank is particularly suited for applications with fluctuating loads and harmonic disturbances.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | VLVAF6P03522AD |
| Range | PowerLogic (VarSet) |
| Product Type | Automatic PFC Capacitor Bank |
| Operating Mode | Automatic |
| Reactive Power Rating | 600 kvar |
| Rated Voltage | 400 V / 415 V AC, 50 Hz |
| Reactor Type | Detuned Reactor (DR4.2) |
| Tuning Frequency | 215 Hz |
| Harmonic Tolerance | Up to 7% voltage / 20% current |
| Incomer Protection | Integrated Circuit Breaker |
| Controller | VarPlus Logic Controller |
| Communication | Modbus RS485 |
| Capacitor Type | VarPlus High-Endurance Capacitors |
| Standards & Certification | CE, IEC 61921, IEC 61439-1, IEC 61439-2, IEC 831-1 & 2 |
| Protection Rating | IP31 (Upgradeable to IP54) |
| Mounting Type | Floor Standing |
| Height | 2200 mm |
| Width | 800 mm (capacitor), 600 mm (reactor) |
| Depth | 600 mm |
| Weight | 952 kg |
