Description

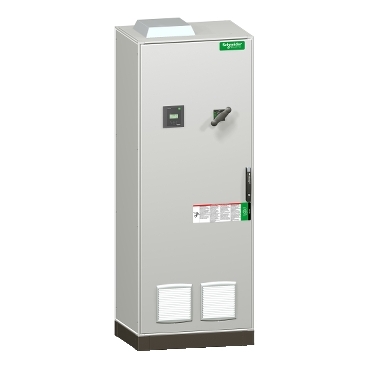

The Schneider Electric PowerLogic VarSet VLVAF5N03522AA Automatic Capacitor Bank is a reliable and efficient power factor correction (PFC) solution tailored for industrial and commercial applications. With a reactive power capacity of 600kvar, it effectively compensates for inductive loads, helping to reduce energy costs, eliminate utility penalties, and improve overall system efficiency.
This model is specifically designed for low harmonic environments, supporting networks with up to 4% voltage harmonics and 10% current harmonics. The system automatically adjusts compensation levels using the advanced VarPlus Logic controller, ensuring optimal performance under varying load conditions.
Equipped with an integrated incomer circuit breaker, this capacitor bank provides enhanced protection and simplifies installation by combining switching and protection in one unit. It also features Modbus RS485 communication, allowing seamless integration with EcoStruxure Power for real-time monitoring, analytics, and improved maintenance planning.
Built with durable VarPlus capacitors compliant with IEC standards, the unit ensures long service life and reliable operation. The floor-standing enclosure (IP31, upgradeable to IP54) is designed for easy installation with bottom cable entry. Its compact footprint compared to higher kvar models makes it suitable for facilities requiring efficient power factor correction in a smaller space.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | VLVAF5N03522AA |
| Range | PowerLogic (VarSet) |
| Product Type | Automatic PFC Capacitor Bank |
| Operating Mode | Automatic |
| Reactive Power Rating | 600 kvar |
| Rated Voltage | 400 V / 415 V AC, 50 Hz |
| Harmonic Tolerance | Up to 4% voltage / 10% current |
| Incomer Protection | Integrated Circuit Breaker |
| Controller | VarPlus Logic Controller |
| Communication | Modbus RS485 |
| Capacitor Type | VarPlus High-Endurance Capacitors |
| Standards & Certification | CE, IEC 61921, IEC 61439-1, IEC 61439-2, IEC 831-1 & 2 |
| Protection Rating | IP31 (Upgradeable to IP54) |
| Mounting Type | Floor Standing |
| Height | 2200 mm |
| Width | 800 mm |
| Depth | 600 mm |
| Weight | 434 kg |
