Description

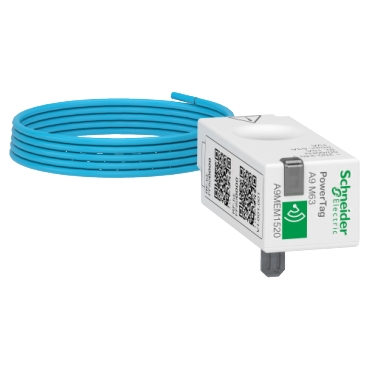

The A9MEM1520 is part of the Schneider Electric PowerLogic PowerTag range, engineered for intelligent energy monitoring. It is designed specifically for Acti9 and Multi9 1P Monoconnect devices with ratings up to 63A, making it suitable for residential, commercial, and light industrial applications.
This wireless energy sensor measures key electrical parameters such as active energy, power, voltage, current, and power factor in real time. It communicates with a gateway or concentrator, enabling detailed monitoring and analysis of energy usage at circuit level.
In case of a power outage, the device sends a voltage loss alarm along with the last measured current values, helping ensure system reliability and diagnostics. It complies with IEC 61557-12 and delivers Class 1 accuracy, ensuring dependable performance.
The device supports flexible installation, as it can be mounted on either the top or bottom of the protective device. Its compact size and ultra-low power consumption make it ideal for modern energy management systems.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Energy Sensor |
| Model | A9MEM1520 (PowerTag A9 M63) |
| Poles | 1P+N |
| Maximum Current (Imax) | 63 A |
| Basic Current (Ib) | 10 A |
| Starting Current | 40 mA |
| Saturation Current | 130 A |
| Rated Voltage | 200–240 VAC (+/- 20%) |
| Communication | Wireless |
| Application | Energy management, load monitoring |
| Compliance | IEC 61557-12 (PMD-I/DD/K55/1) |
| Protection Rating | IP20 / IK05 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | Top or bottom (Monoconnect devices) |
| Color | White (RAL 9003) |
| Width | 18 mm |
| Height | 16.5 mm |
| Depth | 43 mm |
| Weight | 0.0164 kg |
