Description

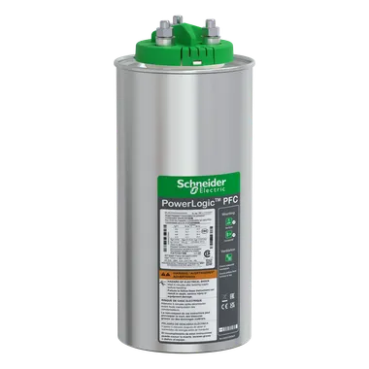

The PowerLogic PFC Capacitor is part of the PowerLogic series, engineered for industrial and commercial applications where high reliability is required. Ideal for handling harmonic currents and voltage disturbances, it maximizes energy efficiency and reduces losses.
With a rated output of 68 kVar at 480 V AC (50 Hz), this VarPlus Can capacitor provides robust performance under stringent operating conditions. Installation is simplified with a ClampTite terminal, ensuring secure and dependable mounting.
Compliant with IEC 60831-1 and IEC 60831-2 standards, the PowerLogic PFC Capacitor guarantees long-term durability, safety, and energy efficiency.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Heavy Duty Capacitor |
| Product Name | PowerLogic PFC Capacitor |
| Model / Part Number | BLRCH680A000B48 |
| Rated Voltage | 480 V AC |
| Rated Power | 68 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Mounting | ClampTite Terminal |
| Height | 200 mm |
| Width | 400 mm |
| Length | 200 mm |
| Weight | 5.256 kg |
