Description

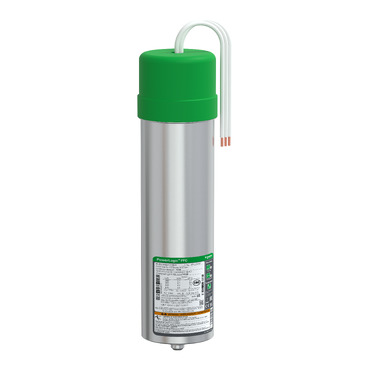

The PowerLogic PFC Capacitor is part of the PowerLogic series, specifically designed for stringent operating conditions. It handles harmonic currents and voltage disturbances effectively, maximizing energy savings and ensuring consistent system stability.
With a rated output of 5.7 kVar at 380 V AC (50 Hz), this capacitor is secured using a double Faston terminal, making installation quick and reliable. Ideal for industrial and commercial applications, it delivers robust performance under demanding conditions.
Compliant with IEC 60831-1 and IEC 60831-2 standards, the PowerLogic PFC Capacitor guarantees long-term durability, safety, and energy efficiency.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Heavy Duty Capacitor |
| Product Name | PowerLogic PFC Capacitor |
| Model / Part Number | BLRCH063A075B40 |
| Rated Voltage | 400 V AC |
| Rated Power | 6.3/7.5 kVar (5.7 kVar at 380 V, 50 Hz) |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Series Name | HDuty |
| Mounting | Double Faston Terminal |
| Height | 125 mm |
| Width | 125 mm |
| Length | 285 mm |
| Weight | 1.056 kg |
