Description
The PowerLogic PFC Capacitor is part of the PowerLogic HDuty series, engineered for stringent operating conditions. It is well-suited for applications involving voltage disturbances or moderate non-linear loads, delivering efficient reactive power compensation and improved system stability.
With a rated power of 31.5 kVar at 480 V AC (50 Hz), this capacitor offers dependable performance for industrial and commercial systems. The ClampTite terminal ensures secure installation and long-term reliability in demanding setups.
Manufactured in compliance with IEC 60831-1 and IEC 60831-2 standards, the PowerLogic PFC Capacitor guarantees safety, durability, and consistent performance.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Heavy Duty Capacitor |

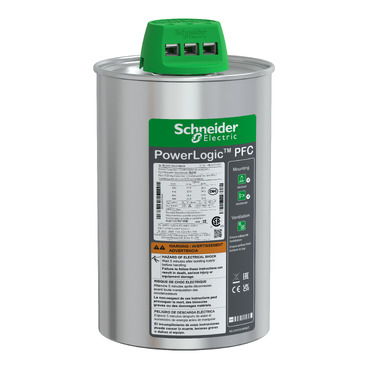

| Product Name | PowerLogic PFC Capacitor |
| Model / Part Number | BLRCH315A378B48 |
| Rated Voltage | 480 V AC |
| Rated Power | 31.5/37.8 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Series Name | HDuty |
| Mounting | ClampTite Terminal |
| Height | 190 mm |
| Width | 190 mm |
| Length | 315 mm |
| Weight | 3.854 kg |
