Description

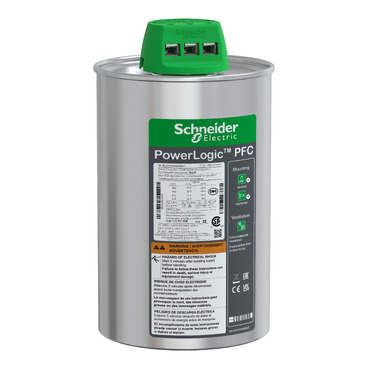

The PowerLogic PFC Capacitor is part of the PowerLogic HDuty series, engineered to perform reliably under stringent operating conditions. It is ideal for networks experiencing voltage disturbances or moderate non-linear loads, providing efficient reactive power compensation and enhanced system stability.
Delivering a rated output of 30.3 kVar at 440 V AC (50 Hz), this capacitor helps reduce energy losses and improve overall system performance. The ClampTite terminal ensures secure and durable installation, making it suitable for industrial and commercial applications.
Compliant with IEC 60831-1 and IEC 60831-2 standards, the PowerLogic PFC Capacitor guarantees long-term safety, durability, and efficiency.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Heavy Duty Capacitor |
| Product Name | PowerLogic PFC Capacitor |
| Model / Part Number | BLRCH303A000B44 |
| Rated Voltage | 440 V AC |
| Rated Power | 30.3 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Series Name | HDuty |
| Mounting | ClampTite Terminal |
| Height | 190 mm |
| Width | 190 mm |
| Length | 325 mm |
| Weight | 3.873 kg |
