Description

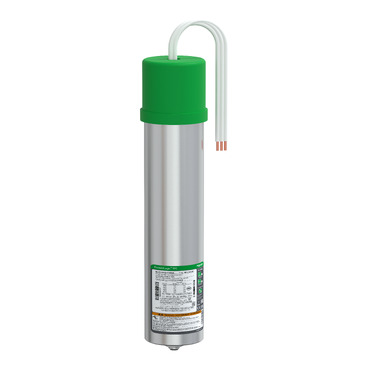

The PowerLogic PFC Capacitor is part of the PowerLogic HDuty series, engineered for use in stringent operating conditions. It is ideal for applications with voltage disturbances or moderate non-linear loads, ensuring effective reactive power compensation and improved system efficiency.
With a rated output of 3 kVar at 400 V AC (50 Hz), this capacitor is well-suited for smaller industrial and commercial systems requiring dependable performance. The double Faston terminal provides secure and easy installation, making it ideal for compact panel configurations.
Built in compliance with IEC 60831-1 and IEC 60831-2 standards, the PowerLogic PFC Capacitor ensures long-term durability, safety, and energy efficiency.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Heavy Duty Capacitor |
| Product Name | PowerLogic PFC Capacitor |
| Model / Part Number | BLRCH030A036B40 |
| Rated Voltage | 400 V AC |
| Rated Power | 3/3.6 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Series Name | HDuty |
| Mounting | Double Faston Terminal |
| Height | 120 mm |
| Width | 125 mm |
| Length | 285 mm |
| Weight | 0.755 kg |
