Description

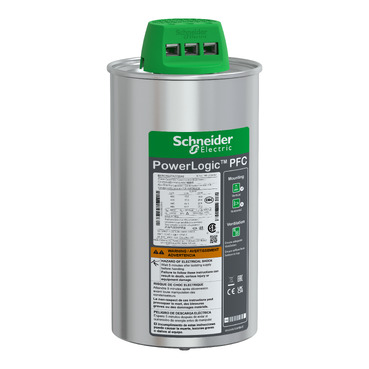

The PowerLogic PFC Capacitor is part of the PowerLogic HDuty series, built for industrial and commercial applications with stringent electrical conditions. This capacitor is suitable for networks experiencing voltage disturbances or moderate non-linear loads, providing reliable reactive power compensation and optimized system performance.
It delivers a rated output of 22.7 kVar at 480 V AC, 50 Hz, with secure mounting ensured by a ClampTite terminal. Compliant with IEC 60831-1 and IEC 60831-2 standards, it guarantees safe and high-performance operation under heavy-duty conditions.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Heavy Duty Capacitor |
| Product Name | PowerLogic PFC Capacitor |
| Model / Part Number | BLRCH227A272B48 |
| Rated Voltage | 480 V AC |
| Rated Power | 22.7/27.2 kVar |
| Output Power | 22.7 kVar at 480 V AC |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Series Name | HDuty |
| Mounting | ClampTite Terminal |
| Height | 190 mm |
| Width | 190 mm |
| Length | 310 mm |
| Weight | 3.069 kg |
