Description

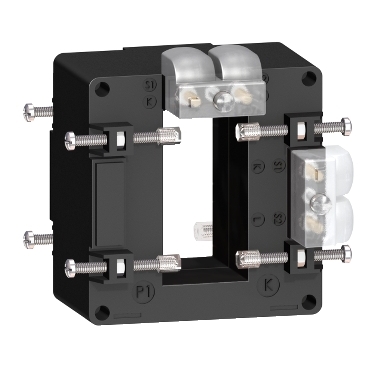

The Schneider Electric PowerLogic METSECT5DA020 Current Transformer (CT) is a durable and high-accuracy measurement device used in electrical monitoring and metering applications. With a primary current rating of 200A and a secondary current of 5A, it provides reliable current transformation for energy meters, protection relays, and monitoring systems.
This tropicalised CT is designed to withstand harsh environmental conditions such as high humidity and temperature variations, making it suitable for industrial environments. It also features a double output, allowing simultaneous connection to multiple devices for enhanced flexibility.
The CT is specifically designed for busbars with dimensions of 32×65 mm, ensuring easy installation and compatibility with standard electrical setups. It delivers Class 1 accuracy at 2 VA and Class 3 at 5 VA, making it suitable for both precise billing and general monitoring applications.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | METSECT5DA020 |
| Range | PowerLogic |
| Product Type | Current Transformer (CT) |
| Rated Primary Current | 200 A |
| Secondary Current | 5 A |
| Accuracy Class | Class 1 (at 2 VA), Class 3 (at 5 VA) |
| Output Type | Double Output |
| Application | Busbar measurement (32 × 65 mm) |
| Design | Tropicalised |
| Width (Total) | 90 mm |
| Width (Inner) | 32 mm |
| Height (Total) | 94 mm |
| Height (Inner) | 65 mm |
| Depth (Frame) | 40 mm |
| Depth (Total) | 90 mm |
| Weight | 0.511 kg |
