Description

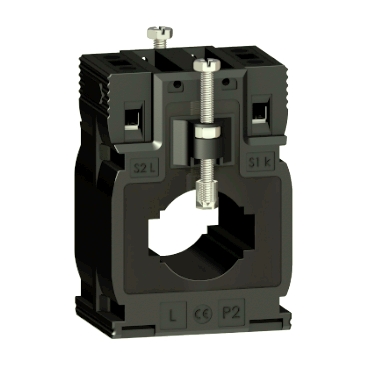

The METSECT5MA015 Current Transformer from Schneider Electric is a reliable, tropicalized current transformer engineered for DIN rail mounting in power monitoring and protection systems. It is part of the PowerLogic series and is compatible with both busbar and cable installations.
This transformer is designed with a line rated current of 150 A and a secondary current rating of 5 A. It accommodates cables up to 27 mm in diameter and supports double-bar output configurations of 32.5 × 10.5 mm or 25.5 × 15.5 mm, offering flexibility for various panel setups.
Accuracy is guaranteed with Class 0.5 at 3 VA maximum burden and Class 1 at 5 VA maximum burden, ensuring precise measurement for energy management and monitoring applications. Its compact tropicalized design and lightweight construction make it ideal for robust and long-lasting performance in demanding environments.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic |
| Product Type | Current Transformer |
| Product Name | CT |
| Model | METSECT5MA015 |
| Rated Primary Current | 150 A |
| Rated Secondary Current | 5 A |
| Accuracy Class | Class 0.5 at 3 VA, Class 1 at 5 VA |
| Max Cable Diameter | 27 mm |
| Compatible Bar Output | 32.5 × 10.5 mm, 25.5 × 15.5 mm |
| Width | 56 mm |
| Height | 80 mm |
| Depth | Frame: 43 mm; Total: 63 mm |
| Weight | 0.298 kg |
