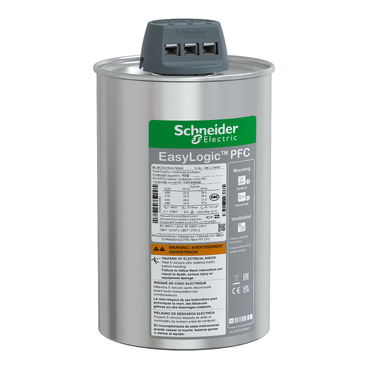

Description
The EasyLogic PFC Capacitor belongs to the EasyLogic series, engineered for dependable performance under standard operating conditions. It is suitable for slightly polluted networks when used with detuned reactors and is ideal for systems with minimal non-linear loads.
Delivering a rated output power of 31.5 kVar at 480 V AC (50 Hz), this capacitor provides effective reactive power compensation, helping to reduce system losses and enhance overall efficiency. The ClampTite terminal ensures secure fastening and reliable electrical connections, making installation straightforward and robust.
Compliant with IEC 60831-1 and IEC 60831-2 standards, the EasyLogic PFC Capacitor guarantees safety, durability, and long-term reliability, making it a trusted choice for power factor correction systems.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | EasyLogic |
| Product Type | Standard Duty Capacitor |
| Product Name | EasyLogic PFC Capacitor |
| Model / Part Number | BLRCS315A378B48 |
| Rated Voltage | 480 V AC |
| Rated Power | 31.5/37.8 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Mounting | ClampTite Terminal |
| Height | 242 mm |
| Width | 190 mm |
| Length | 310 mm |
| Weight | 3.2 kg |
