Description

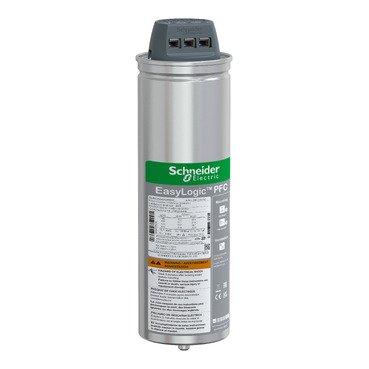

The EasyLogic PFC Capacitor is part of the EasyLogic series, built for dependable performance in standard operating environments. It is designed for use in slightly polluted networks with detuned reactors and is ideal for systems with minimal non-linear loads.
Providing a rated output of 25 kVar at 440 V AC (50 Hz), this capacitor ensures effective reactive power compensation, helping to reduce energy losses and improve overall system efficiency. The ClampTite terminal guarantees secure fastening and robust installation, making it suitable for demanding commercial and industrial applications.
Compliant with IEC 60831-1 and IEC 60831-2 standards, the EasyLogic PFC Capacitor ensures safety, durability, and long-term reliability.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | EasyLogic |
| Product Type | Standard Duty Capacitor |
| Product Name | EasyLogic PFC Capacitor |
| Model / Part Number | BLRCS250A300B44 |
| Rated Voltage | 440 V AC |
| Rated Power | 25/30 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Mounting | ClampTite Terminal |
| Height | 308 mm |
| Width | 90 mm |
| Length | 90 mm |
| Weight | 2.3 kg |
