Description
The EasyLogic PFC Capacitor is part of the EasyLogic series, designed for dependable operation in standard electrical environments. It performs reliably in systems with minimal non-linear loads, helping to optimize reactive power compensation and energy savings.
Delivering a rated output of 15 kVar at 440 V AC (50 Hz), this capacitor reduces energy losses and improves overall system efficiency. The ClampTite terminal ensures secure and stable installation, making it suitable for industrial and commercial applications.
Compliant with IEC 60831-1 and IEC 60831-2 standards, the EasyLogic PFC Capacitor guarantees durability, safety, and long-term reliability.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | EasyLogic |
| Product Type | Standard Duty Capacitor |

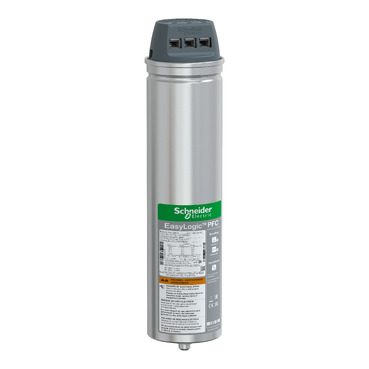

| Product Name | EasyLogic PFC Capacitor |
| Model / Part Number | BLRCS150A180B44 |
| Rated Voltage | 440 V AC |
| Rated Power | 15/18 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Mounting | ClampTite Terminal |
| Height | 308 mm |
| Width | 80 mm |
| Length | 80 mm |
| Weight | 1.3 kg |
