Description

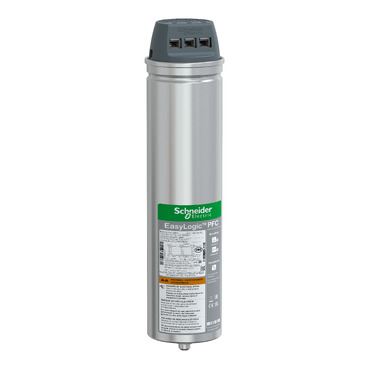

The EasyLogic PFC Capacitor is part of the EasyLogic series, engineered for consistent performance in standard electrical systems. Ideal for networks with minimal non-linear loads, it offers effective reactive power compensation and helps reduce energy losses.
Providing a rated output of 12.5 kVar at 440 V AC (50 Hz), this capacitor ensures reliable operation and energy savings. The ClampTite terminal guarantees secure and robust installation, making it suitable for industrial and commercial applications.
Compliant with IEC 60831-1 and IEC 60831-2 standards, the EasyLogic PFC Capacitor assures long-term safety, durability, and efficiency.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | EasyLogic |
| Product Type | Standard Duty Capacitor |
| Product Name | EasyLogic PFC Capacitor |
| Model / Part Number | BLRCS125A150B44 |
| Rated Voltage | 440 V AC |
| Rated Power | 12.5/15 kVar |
| Network Frequency | 50/60 Hz |
| Standards | IEC 60831-1, IEC 60831-2 |
| Mounting | ClampTite Terminal |
| Height | 280 mm |
| Width | 80 mm |
| Length | 80 mm |
| Weight | 1.704 kg |
There are no reviews yet.
