Description

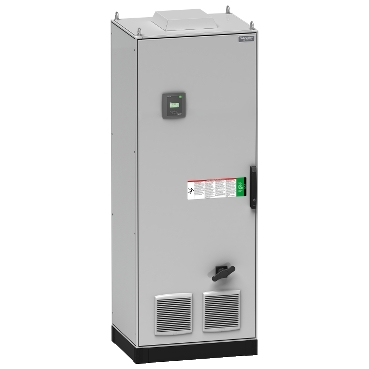

The automatic EasyLogic PFC Capacitor Bank is part of the PowerLogic, VarSet family, designed for automatic reactive power management. Ideal for variable or unstable loads, this 600 kVar capacitor bank operates at 400–415 V AC, 50 Hz, and automatically adjusts compensation using a VarplusLogic Power Factor Controller.
Smart monitoring features, RS485 Modbus communication, and compatibility with EcoStruxure Power enable seamless integration into IoT-enabled digital power installations. The enclosure (RAL7035) is floor-standing, IP31 rated (optional IP54), and comes with bottom-entry incoming connections protected by a circuit breaker. It is built with long-life Varplus capacitors certified to IEC 60831-1 & IEC 60831-2 and certified under CE, IEC 61921, and IEC 61439 (Parts 1 & 2).
This solution is perfect for industrial and commercial applications where automatic power factor correction is required, helping to optimize energy efficiency, lower capital costs, and secure operations.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | PowerLogic VarSet |
| Device Short Name | Automatic Capacitor Bank |
| Product Type | Capacitor Bank |
| Model / Part Number | VLVAF5L600A40A |
| Rated Voltage | 400–415 V AC |
| Reactive Power | 600 kVar |
| Operating Mode | Automatic |
| Network Frequency | 50 Hz |
| Enclosure Type | Floor-standing, RAL7035 |
| Protection | IP31 (standard), optional IP54 |
| Monitoring | VarplusLogic Power Factor Controller, Modbus RS485 |
| Standards | CE, IEC 61921, IEC 61439-1, IEC 61439-2, IEC 60831-1 & 2 |
| Height | 2200 mm |
| Width | 800 mm |
| Depth | 600 mm |
| Weight | 324 kg |
