Description

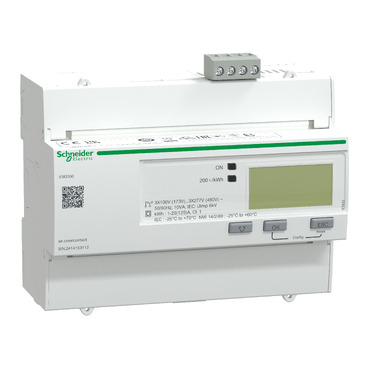

The Schneider Electric Acti9 iEM3350 Energy Meter (A9MEM3350) is a reliable and high-precision energy monitoring device designed for commercial and industrial electrical systems. Part of the Acti9 iEM3000 series, this three-phase DIN rail-mounted meter provides accurate measurement of electrical parameters, making it ideal for energy management, sub-billing, and system optimization.
This meter supports direct connection up to 125A and is capable of measuring active and reactive power, active and reactive energy, voltage, and current. It is compatible with single-phase, three-phase, and three-phase with neutral configurations, making it highly versatile across different installations.
With Modbus communication via screw terminals, the iEM3350 easily integrates into energy management systems and building automation platforms. This allows seamless connectivity with IoT-enabled solutions like EcoStruxure Power, enabling real-time monitoring, data analysis, and efficient energy optimization.
The device is designed for 50Hz or 60Hz networks and complies with international standards, including CE, UL, and EAC certifications. Its compact DIN rail form factor ensures easy installation in electrical panels, while the LCD display and LED indicators provide clear local status and performance feedback.
Built for accuracy and durability, the iEM3350 meets Class 1 accuracy standards for active energy measurement (IEC 62053-21), making it suitable for applications that require reliable energy tracking and reporting.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | A9MEM3350 |
| Range | Acti9 iEM3000 |
| Product Type | Energy Meter |
| Device Short Name | iEM3350 |
| Rated Current | Up to 125 A (Direct Connection) |
| Measurement Parameters | Voltage, Current, Active/Reactive Power, Active/Reactive Energy |
| Network Frequency | 50 Hz / 60 Hz |
| Supply Voltage | 100–277 VAC / 173–480 VAC |
| Communication | Modbus (RS485) |
| Mounting Type | DIN Rail |
| Accuracy Class | Class 1 (IEC 62053-21) |
| Certifications | CE, UL, EAC |
| Display | LCD with LED indicators |
| Dimensions (H x W x D) | 103.2 mm x 126 mm x 69.3 mm |
| Weight | 0.692 kg |
