Description

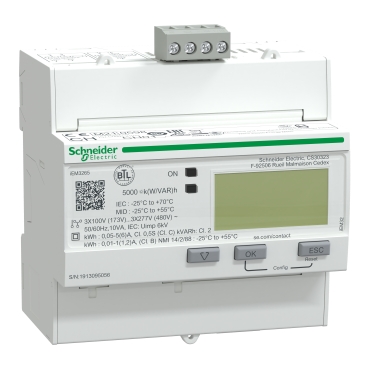

The Acti9 iEM3265 Energy Meter is part of the Acti9 iEM3000 series, offering precise and reliable energy monitoring for commercial and industrial environments. With MID certification, it is ideal for billing applications that require regulatory compliance and high measurement accuracy.
Supporting single-phase and three-phase systems (with or without neutral), this meter measures active and reactive power, energy, voltage, and current. It also features four-quadrant energy measurement for detailed tracking of energy flow in both directions.
The device uses BACnet communication, making it highly compatible with building automation systems and enabling seamless integration with platforms such as EcoStruxure Power. It includes one programmable digital input and one digital output, allowing flexible control, monitoring, and pulse output functionality.
With support for up to four tariff schedules and high accuracy (Class 0.5S and Class C), the iEM3265 ensures dependable performance. It features an LCD display and LED indicators for power status, accuracy verification, overload alarms, and communication signals.
Specifications
| Specification | Details |
|---|---|
| Product Brand | Schneider Electric |
| Range | Acti9 iEM3000 |
| Device Short Name | iEM3265 |
| Product Type | Energy Meter |
| Model / Part Number | A9MEM3265 |
| Measurement Type | Active & Reactive Energy, Power, Voltage, Current |
| Accuracy Class | Class 0.5S (IEC 62053-22), Class C (EN 50470-3), IEC 61557-12 |
| Tariff Support | Up to 4 tariffs |
| Communication | BACnet |
| Digital Inputs | 1 (programmable) |
| Digital Outputs | 1 (programmable / pulse output) |
| Measurement Capability | Four-quadrant energy measurement |
| Current Measurement | 1A / 5A CT |
| Network Frequency | 50/60 Hz |
| Voltage Range | 100–277 VAC / 173–480 VAC |
| Mounting Type | DIN rail |
| Display | LCD |
| Certifications | CE, UL, EAC, MID |
| Height | 95 mm |
| Width | 90 mm |
| Depth | 69 mm |
| Weight | 0.368 kg |
