Description
The Schneider Electric AccuSine+ PCSPCTFCL2500511 Current Transformer is a premium split-core solution engineered for high-current measurement in industrial and power quality applications. Designed specifically for use with AccuSine systems such as active harmonic filters and electronic VAR controllers, it ensures precise monitoring and system optimization.

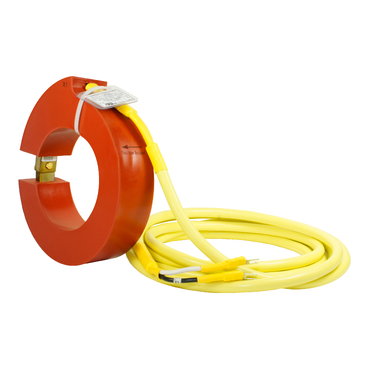

Its split-core, round design allows the transformer to be easily opened with a twist motion, making installation simple and efficient—especially in retrofit or existing cable setups where disconnection is not feasible. With a large internal diameter of 279.4 mm, it accommodates large conductors and busbars with ease.
This CT provides a rated primary current of 2500A and a 5A secondary output, ensuring compatibility with standard monitoring devices. It delivers reliable accuracy across a wide measurement range, improving as current increases, making it suitable for dynamic load conditions.
Equipped with a 3.65-meter flying lead and spade connectors, installation is further simplified, reducing additional wiring requirements. Certified with cURus and CE standards, the PCSPCTFCL2500511 guarantees safety, compliance, and performance in demanding industrial environments.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | PCSPCTFCL2500511 |
| Range | AccuSine |
| Product Type | Split-Core Current Transformer (CT) |
| Application | Measurement accessory |
| Compatible Systems | AccuSine PCS+ active harmonic filter, AccuSine PFV+ VAR controller |
| Rated Primary Current | 2500 A |
| Secondary Current | 5 A |
| Transformer Type | Split Core |
| Shape | Round |
| Inner Diameter | 279.4 mm |
| Accuracy | 4% (200–300A), 3% (400–500A), 2% (600–800A), 1% (above 800A) |
| Lead Type | 3.65 m flying lead with spade connectors |
| Certifications | CE, cURus |
| Height | 10.2 cm |
| Width | 45.8 cm |
| Length | 45.8 cm |
| Weight | 3.402 kg |
