Description

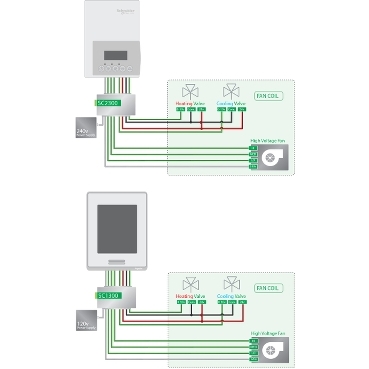

The SC2300 Relay Pack is a robust control accessory engineered for seamless integration with the SER8300 and SER7300 8000 and 7000 series room controllers. It is specifically designed for low voltage fan coil units while also supporting motor, compressor, and mixed voltage fan coil control applications.
Operating on a rated supply voltage of 220–240V AC, single phase at 50/60 Hz, the SC2300 ensures dependable performance across demanding HVAC environments. The unit provides three digital inputs for fan speed control, three outputs for fan relays, and two outputs for power supply. It delivers 24V AC output voltage for control circuits, making it suitable for structured and efficient system integration.
Built with a NEMA 2 degree of protection, the relay pack is designed for indoor environments where protection against light splashing and debris is required. It operates reliably in ambient temperatures ranging from 32°F to 122°F (0°C to 50°C) and can be stored in temperatures between -22°F and 122°F (-30°C to 50°C). With a relative humidity tolerance of 5–95% non-condensing, the SC2300 ensures long-term durability and consistent operation.
Compact and weighing just 0.4 kg, this relay pack is a reliable solution for expanding HVAC control capabilities in commercial and residential applications.
Specifications
| Specification | Details |
|---|---|
| Product Type | Relay Pack |
| Device Short Name | SC2300 |
| Compatible Controllers | SER8300, SER7300 |
| Device Applications | Low Voltage Fan Coil, Mixed Voltage Fan Coil, Compressor Control Relay, Motor |
| Rated Supply Voltage | 220–240V AC, 1 Phase |
| Network Frequency | 50/60 Hz |
| Rated Power | 12 VA at 0.5A; 0.25 hp at 2.5A |
| Digital Inputs | 3 (Fan Speed) |
| Outputs | 3 Fan Relays, 2 Power Supply Outputs |
| Output Voltage | 24V AC (Control Circuit) |
| Protection Rating | NEMA 2 |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -22°F to 122°F (-30°C to 50°C) |
| Relative Humidity | 5–95% Non-Condensing |
| Height | 142.2 mm |
| Net Weight | 0.4 kg |
| Height | 18.288 cm |
| Width | 14.224 cm |
| Length | 5.156 cm |
| Weight | 400 g |
