Description

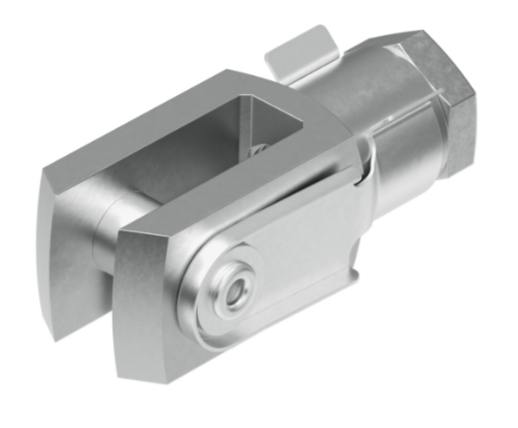

The SG-M10X1,25 rod clevis is a precision-machined connection accessory designed for use with pneumatic actuators and cylinders. With a female M10x1.25 thread, it conforms to both DIN 71752 and ISO 8140 standards, ensuring compatibility with a wide range of ISO-compliant cylinders.
Manufactured from galvanized steel for corrosion resistance (CRC class 1), this clevis is ideal for applications requiring moderate environmental durability. It supports a maximum load capacity of 0.9 kN, operates in temperatures ranging from -40 °C to 150 °C, and is RoHS-compliant and LABS (PWIS) free as per VDMA24364-B2-L standards.
This component is also suitable for Li-ion battery production, excluding the use of copper-heavy materials, making it ideal for sensitive industrial environments.
Specifications
| Attribute | Details |
|---|---|
| Part Number | SG-M10X1,25 |
| Thread Size | M10x1.25 (Female thread) |
| Conforms to Standards | DIN 71752, ISO 8140 |
| Max. Load Capacity | 0.9 kN |
| Ambient Temperature Range | -40 °C to +150 °C |
| Corrosion Resistance Class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) Conformity | VDMA24364-B2-L |
| Material – Clevis | Steel, Galvanised |
| Material – Bolt | Steel, Galvanised |
| Material – Nut | Steel, Galvanised |
| Suitability for Li-ion Battery Production | Copper content <1% (excl. PCBs, cables, etc.) |
| Product Weight | 103 g |
| RoHS Compliance | Yes |
