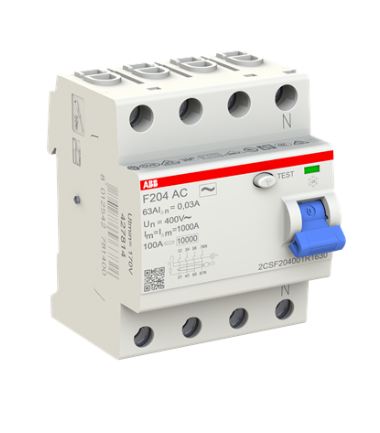

Residual Current Circuit Breaker (RCCB) – F204 AC-63/0.03
ABB F204 AC-63/0.03 – 4-pole RCCB, Type AC, 63 A, 30 mA, for reliable earth fault protection in residential and industrial installations.
Original price was: $619.91.$599.25Current price is: $599.25.
(Save $20.66)
In stock
Description
The ABB F204 AC-63/0.03 Residual Current Circuit Breaker (RCCB) is designed to protect people and electrical installations from earth fault currents. With a 30 mA sensitivity, it offers fast and dependable disconnection in the event of leakage, reducing the risk of electric shock or fire.
This 4-pole RCCB is suitable for 230/400 V AC systems and supports both 50 and 60 Hz frequencies. Built with robust insulation and a high rated current of 63 A, it is ideal for residential, commercial, and light industrial applications. The Type AC configuration ensures protection against sinusoidal residual currents.
Engineered to ABB’s stringent quality standards, the F204 AC series guarantees performance, durability, and ease of installation.
Specifications
| Attribute | Value |
|---|---|
| Product Name | F204 AC-63/0.03 |
| Product ID | 2CSF204001R1630 |
| EAN | 8012542781400 |
| Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA |
| Number of Poles | 4 |
| Type | AC |
| Rated Voltage (Ur) | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Rated Frequency | 50 / 60 Hz |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Width (modular spacings) | 4 |
| Product Width | 70 mm |
| Product Height | 85 mm |
| Product Depth | 69 mm |
| Product Weight | 360 g |
| Standard Compliance | IEC/EN 61008 |
Additional information
| Weight | 0.360 kg |
|---|---|
| Dimensions | 70 × 85 × 69 mm |
