Description

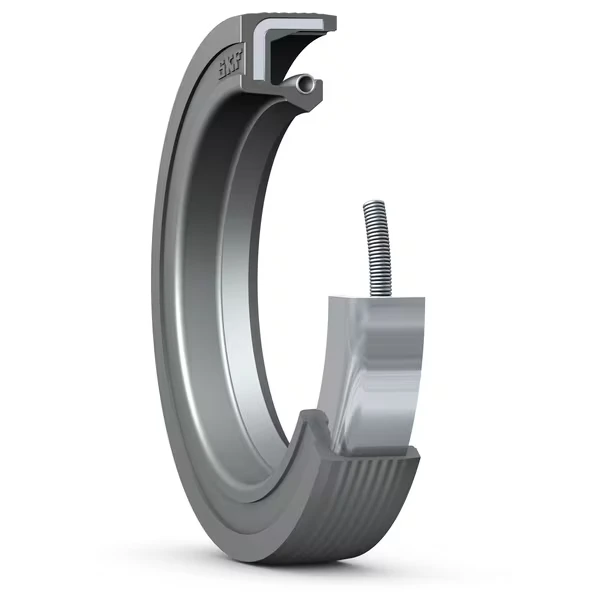

The SKF 80X110X12 HMS5 RG radial shaft seal is designed to ensure effective separation between rotating and stationary components. Featuring a rubber-coated outside diameter for secure housing fit and a nitrile rubber (NBR) sealing lip reinforced with a garter spring, it maintains consistent radial pressure on the shaft, preventing lubricant leakage while blocking contaminants.
Its conventional sealing lip design supports high pumping efficiency and reliable sealing performance, even in applications subject to misalignment. With an 80 mm shaft diameter, 110 mm housing bore, and 12 mm width, this seal is suitable for a wide range of industrial, agricultural, and automotive applications.
Engineered to operate at speeds up to 2,340 r/min and circumferential speeds up to 9.74 m/s, it performs reliably in temperatures ranging from –40 °C to +100 °C, making it a durable choice for challenging environments.
Specifications
| Attribute | Details |
|---|---|
| Product Type | Radial Shaft Seal |
| Design | HMS5, rubber outside diameter |
| Sealing Lip | Single lip with garter spring |
| Shaft Diameter | 80 mm |
| Housing Bore Diameter | 110 mm |
| Seal Width | 12 mm |
| Sealing Lip Material | Nitrile Rubber (NBR) |
| Auxiliary Lip | No |
| Temperature Range | -40°C to +100°C |
| Limiting Speed | 2,340 r/min |
| Permissible Circumferential Speed | 9.74 m/s |
| Rotational Speed | 2,340 r/min |
| Outside Diameter Type | Rubber metal reinforced |
| Net Weight | 0.0705 kg |
