Description

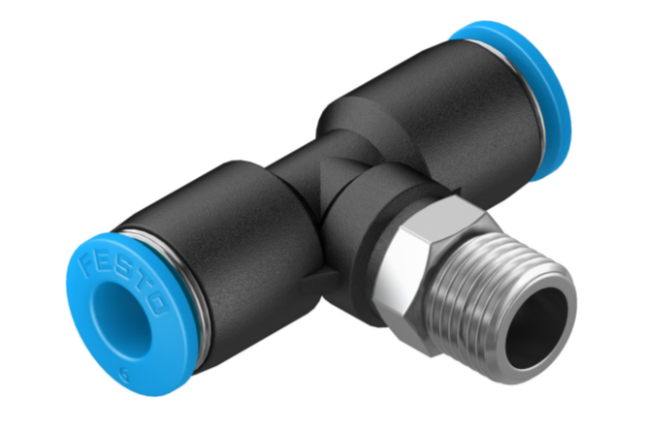

The QST-1/8-6 Push-in T-fitting offers a robust and compact solution for pneumatic system branching. With a T-shape design, this fitting integrates a R1/8″ male thread on one end and two push-in connections for 6 mm outer diameter tubing, enabling quick and reliable distribution of air or liquid media in automation setups.
Designed using durable nickel-plated brass, PBT, POM, and high-alloy stainless steel, the fitting operates within a pressure range of -0.095 MPa to 1.4 MPa, making it ideal for a range of industrial environments. It supports operation with compressed air and ice-free water, conforms to RoHS, ISO cleanroom, and VDMA24364 LABS (PWIS) standards, and is packaged in sets of 10.
A perfect choice for engineers seeking high-integrity pneumatic fittings with ease of installation, reliability, and reusability in tight spaces.
Specifications
| Attribute | Details |
|---|---|
| Part Number | QST-1/8-6 |
| Design | T-shape push-in fitting |
| Connection Type 1 | Male thread R1/8 |
| Connection Type 2 & 3 | Tubing OD 6 mm |
| Nominal Size | 4.2 mm |
| Number of Outputs | 2 |
| Number of Supply Lines | 1 |
| Pack Size | 10 |
| Mounting Position | Optional |
| Operating Principle | Push-pull |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:-:-]), water |
| Operating Pressure Range | -0.095 MPa to 0.6 MPa (up to 1.4 MPa temp-dependent) |
| Max Water Pressure (at 50°C) | 0.6 MPa |
| Ambient Temperature Range | -10 °C to 80 °C |
| Nominal Tightening Torque | 7 Nm ± 20% |
| Cleanroom Class | ISO 14644-1 Class 4 |
| Corrosion Resistance Class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) Conformity | VDMA24364-B1/B2-L |
| Releasing Ring Color | Blue |
| Product Weight | 14 g |
| Type of Mounting | External hexagon, 10 mm |
| Material – Screwed Plug | Nickel-plated brass |
| Material – Housing | PBT |
| Material – Releasing Ring | POM |
| Material – Tubing Seal | NBR |
| Material – Tubing Clamp Component | High-alloy stainless steel |
| RoHS Compliance | Yes |
